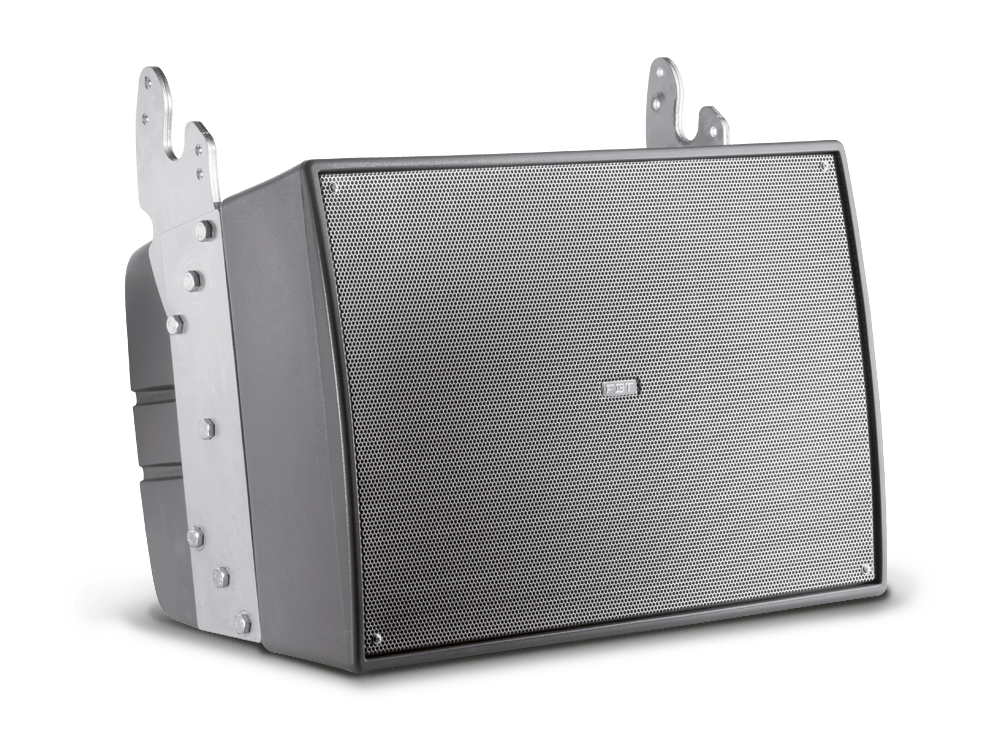

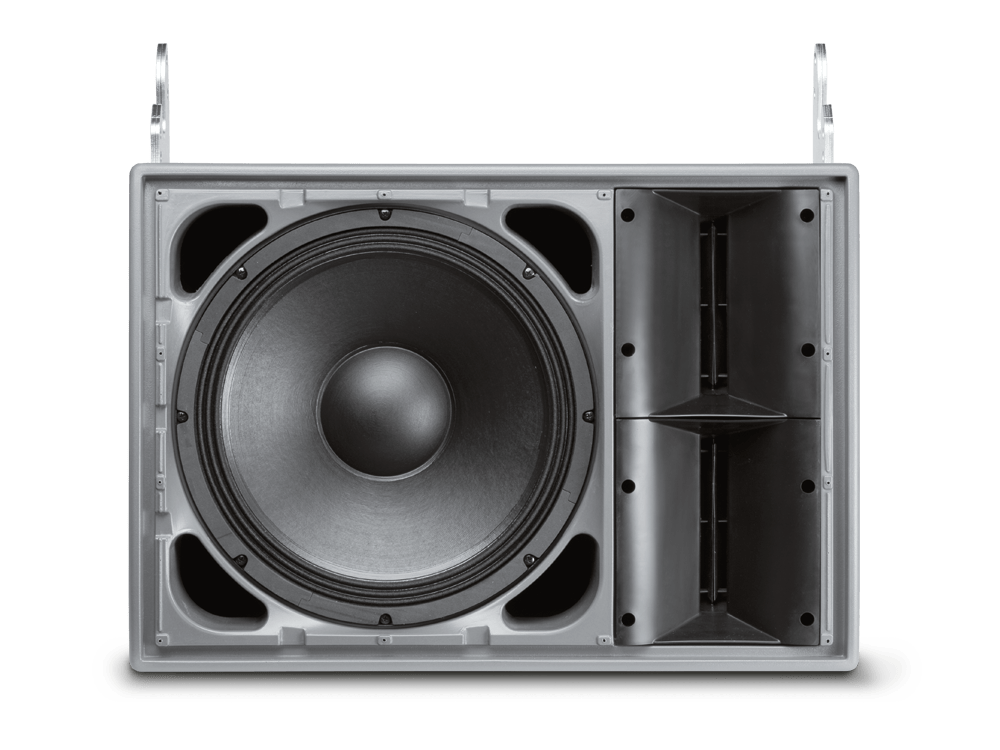

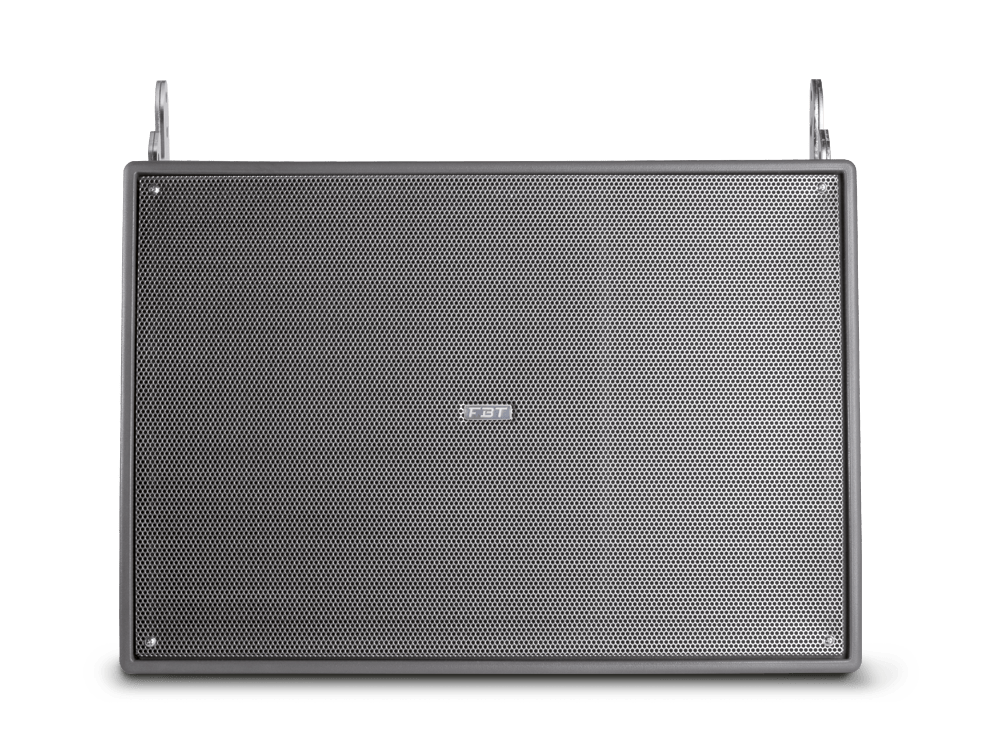

SHADOW 142L

PASSIVE LINE ARRAY 14"

Click on the image to zoom

Download Accessories

Technical Specifications

Code:

36197

Configuration:

2 way

Recommended amplifier:

1000W RMS

Long Term power:

500W

Short term power:

2000W

Nominal impedance:

8Ohm

Frequency response:

60Kz / 20kHz (@ -6dB)

Low Frequency woofer:

14'' - 3'' coil

High frequency driver: (copy)

2 x 14'' - 2.5'' coil

Maximum SPL cont/peak:

126.5 / 137

Dispersion:

100° x 15°

Input connector:

2 x Souriau

Net Dimension (WxHxD):

615 x 542 x 415 mm / 24.2 x 21.3 x 16.3 inch

Net Weight:

38.8 Kg / 85.5 lb

Transport Dimension (WxHxD):

555 x 785 x 545 mm / 21.8 x 31 x 21.4 inch

Transport Weight:

40.5 Kg / 89.2 lb

Download

Datasheet

0.77 MB

User Manual

36.16 MB

Drawing

0.1 MB

DWG Drawing

0.91 MB

GLL Ease & Focus

3.18 MB

Accessories

SW-F 142

Technical Draw

1.01 MB
