VERTUS CLA 403T

PASSIVE COLUMN ARRAY 4x3"

Weatherproof - EN54-24

Weatherproof - EN54-24

VERTUS CLA 403T

Click on the image to zoom

VERTUS CLA 403T

VERTUS CLA 403T

VERTUS CLA 403T

VERTUS CLA 403T

Download Accessories

Technical Specifications

Code:

41807 (Black) / 41824 (White)

Configuration:

1 way

Recommended amplifier:

100 W RMS

Long Term power:

50W

Short term power:

200W

Nominal impedance:

16 Ohm

Frequency response:

150hz-20kHz @-6dB

Low Frequency woofer:

---

High frequency driver: (copy)

4x3'' - 0.75'' VC Fullrange Driver

Maximum SPL cont/peak:

106/112 dB

Dispersion:

125°x28° narrow - 125°x36° wide HxV (2kHz)

Input connector:

Ceramic terminal block

Net Dimension (WxHxD):

100 x 368 x 125 mm / 3.9 x 14.5 x 4.9 inch

Net Weight:

3 Kg / 6.6 lb

Transport Dimension (WxHxD):

190 x 435 x 170 mm / 7.4 x 17.1 x 6.7 inch

Transport Weight:

3,5 Kg / 7.7 lB

Download

Datasheet

1.04 MB

User Manual

7 MB

GLL Ease & Focus

16.34 MB

GLL Narrow EN54-24 EVAC

4 MB

GLL Wide EN54-24 EVAC

7.79 MB

Declaration of Performance

1.59 MB

CPR

0.7 MB

Accessories

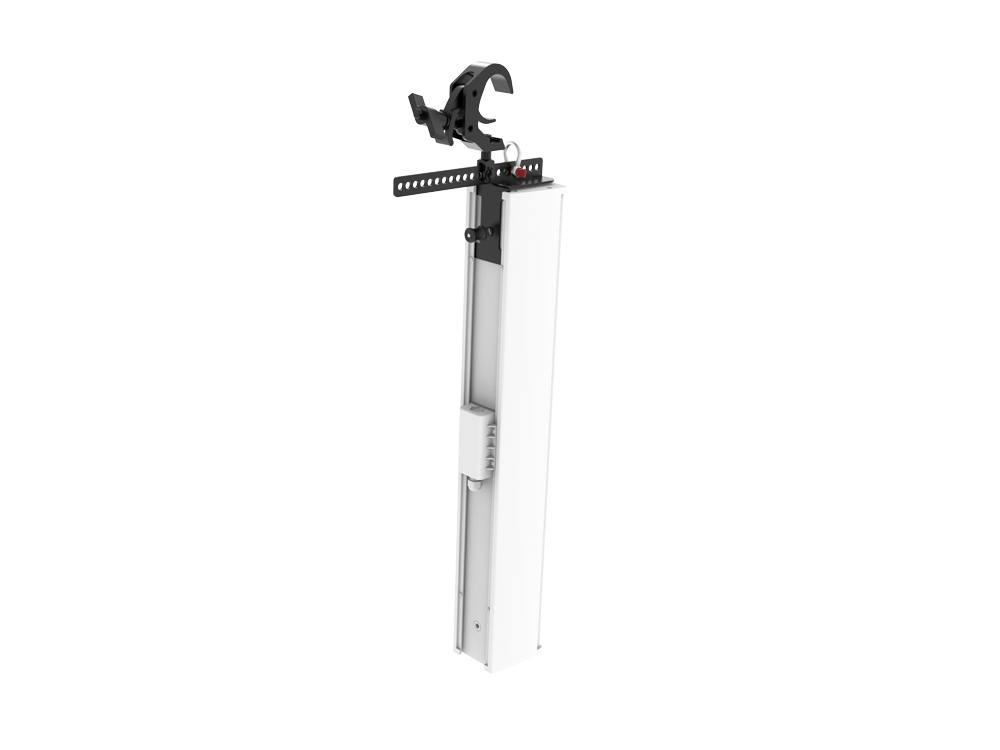

VT-T 3

Technical Draw

1.24 MB

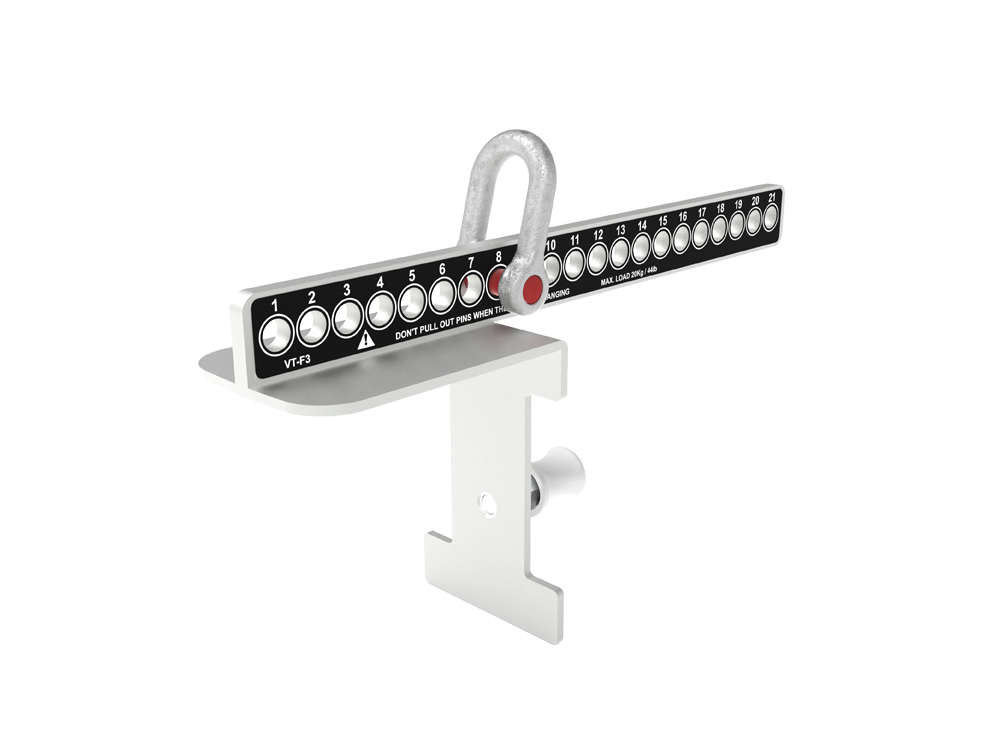

VT-F 3

VT-F3

1 MB

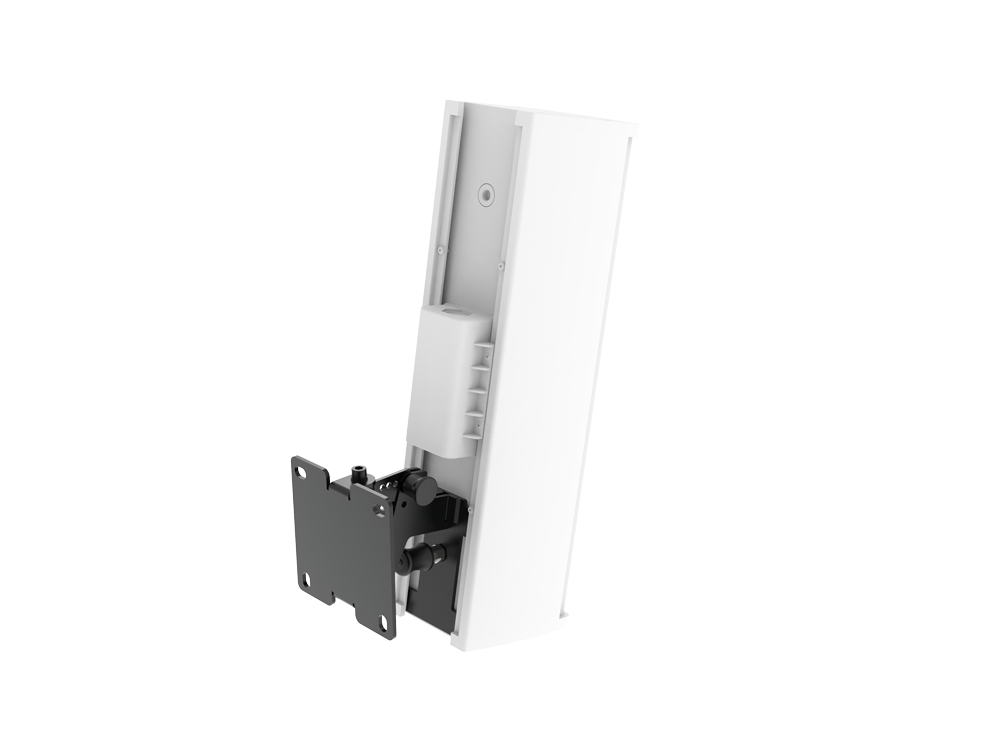

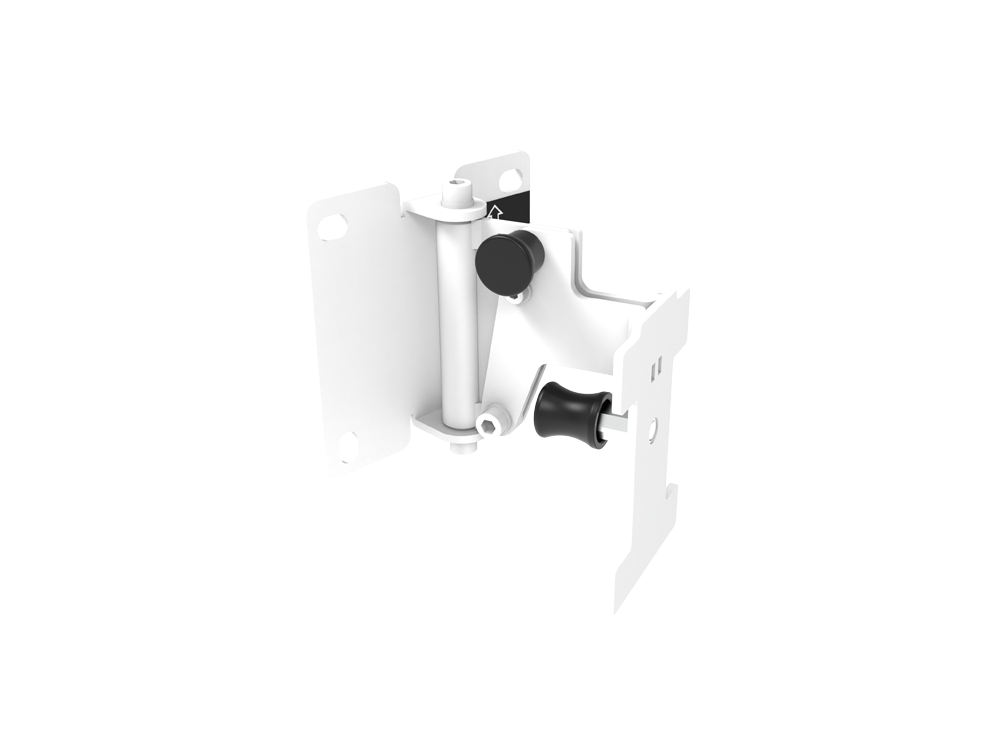

VT-W 3

VT-W 3

1.21 MB

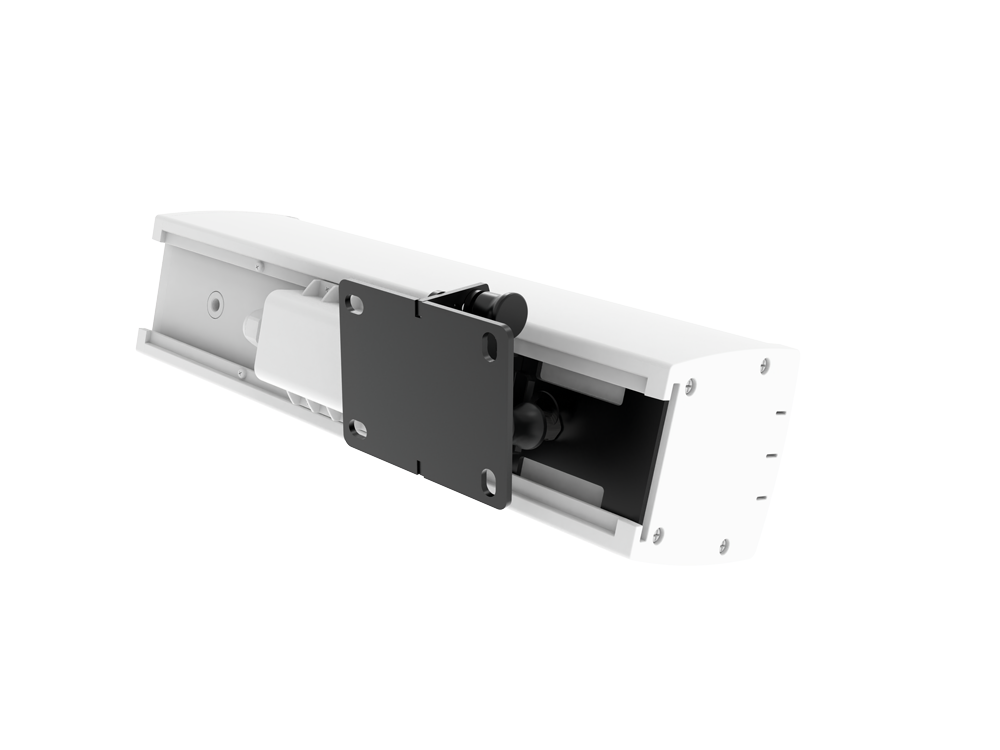

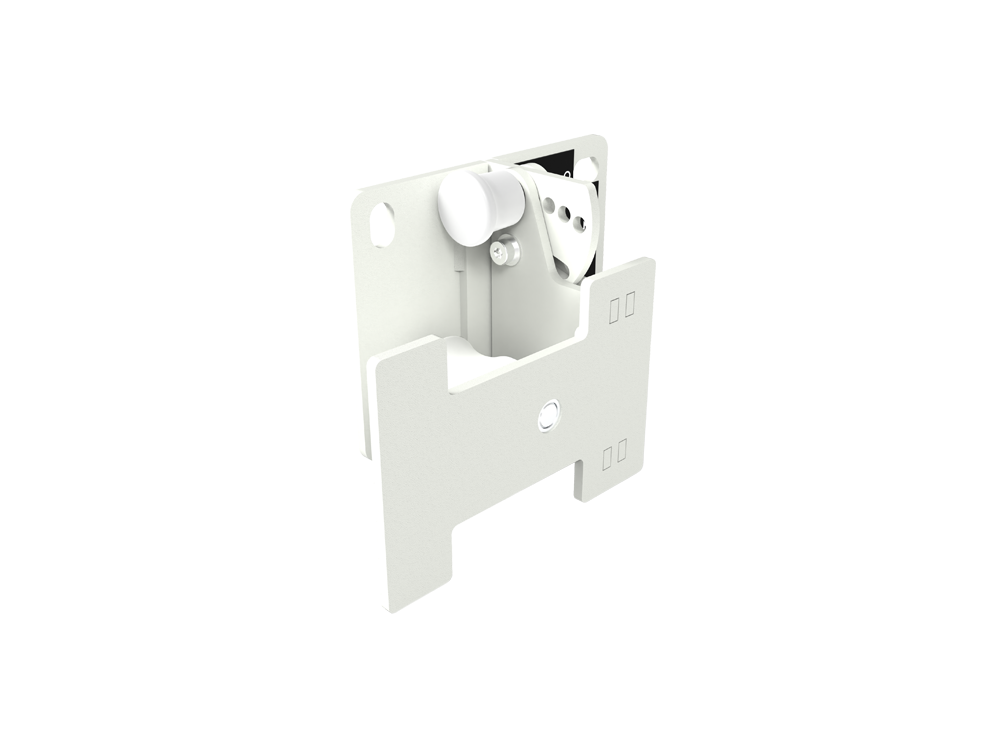

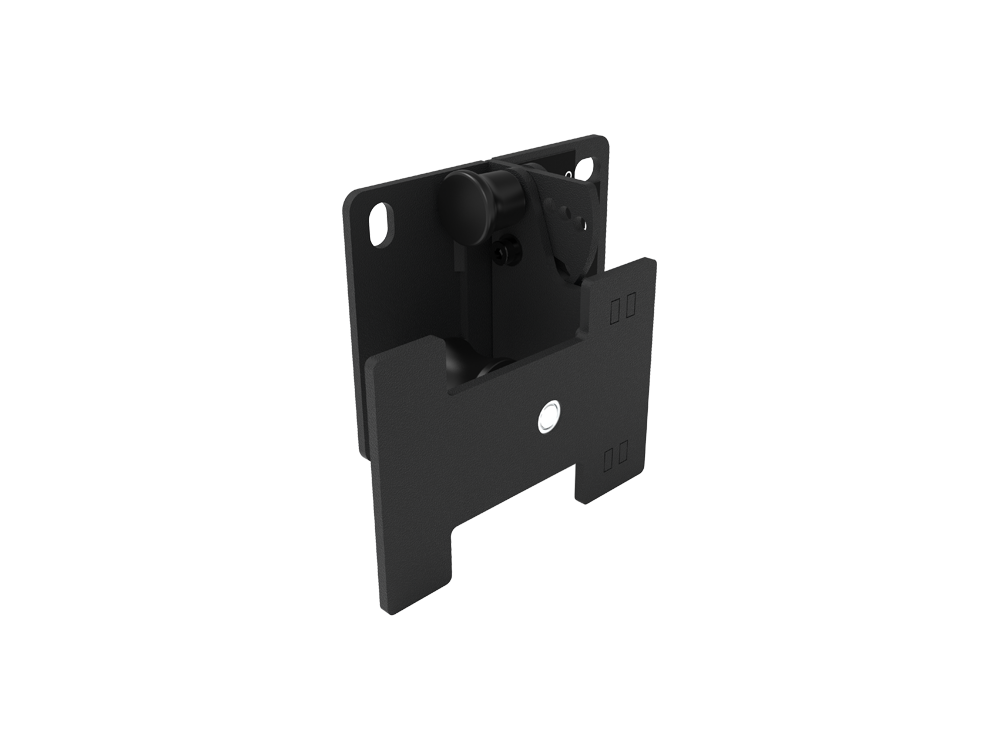

VT-WH 3

VT-Wh3

0.94 MB

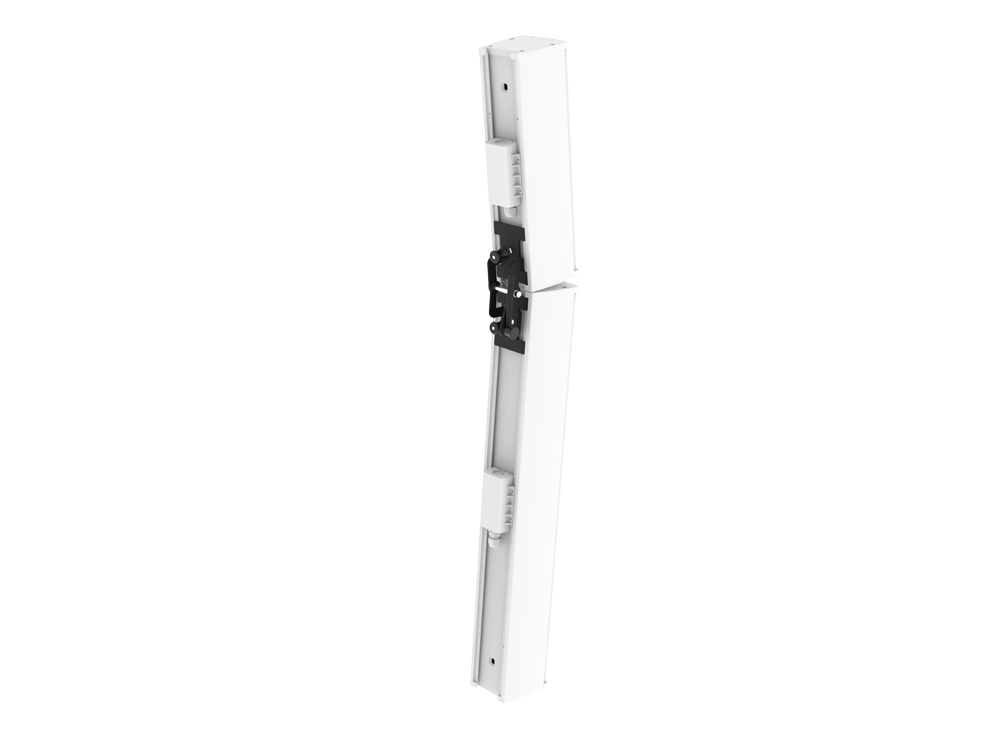

VT-J 3

VT-J 3

1.44 MB

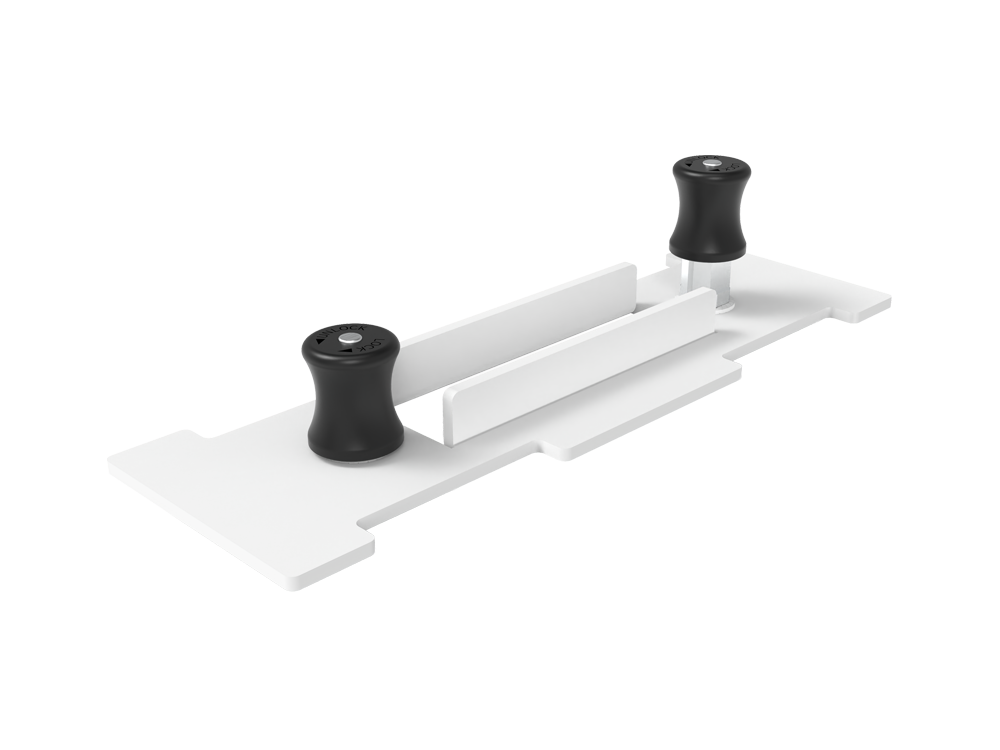

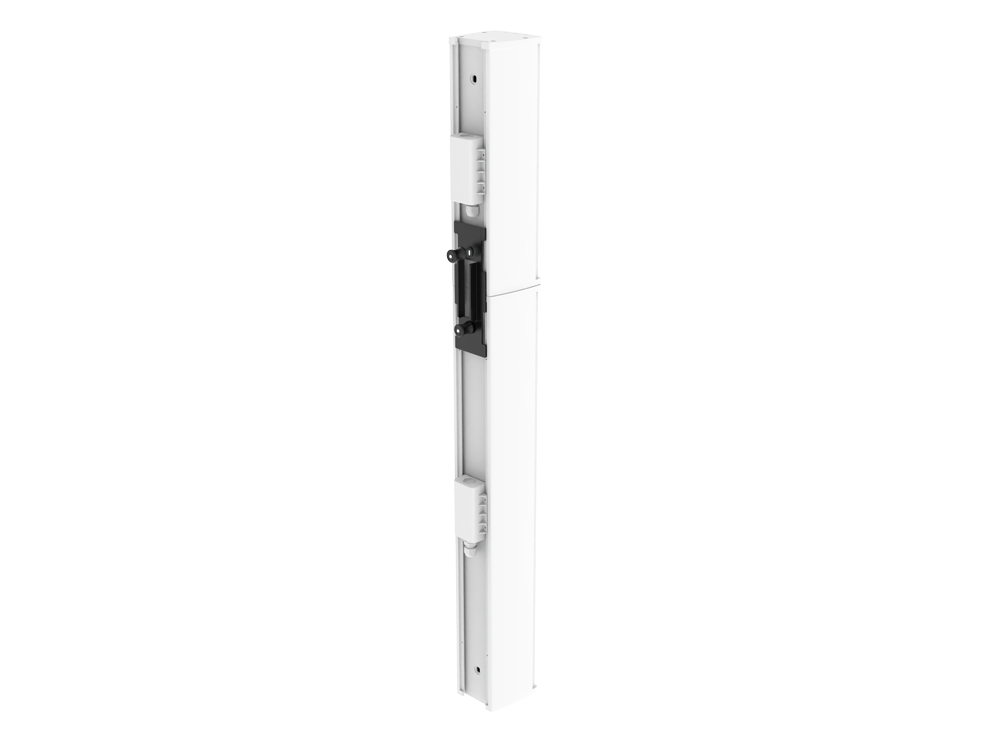

VT-JF 3

VT-J3

1.14 MB
