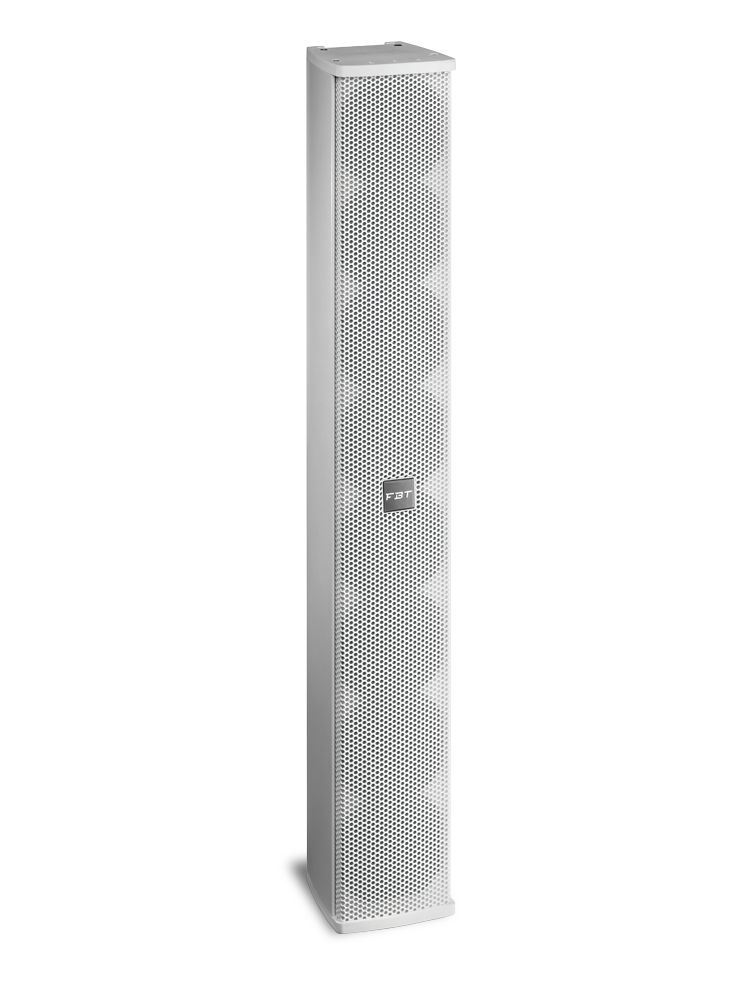

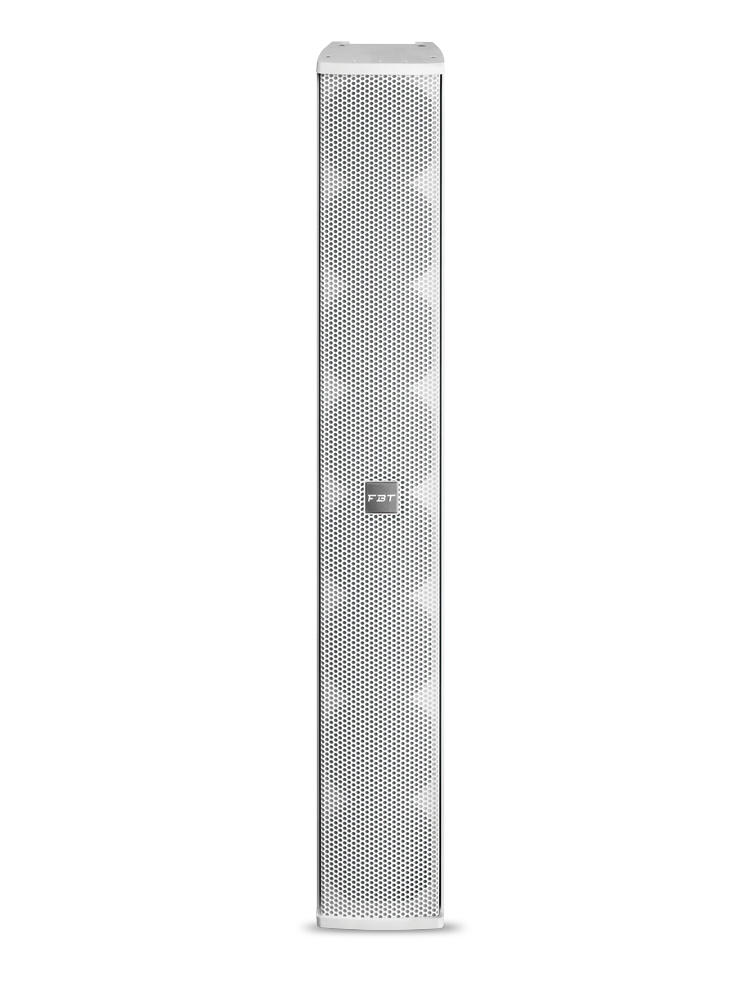

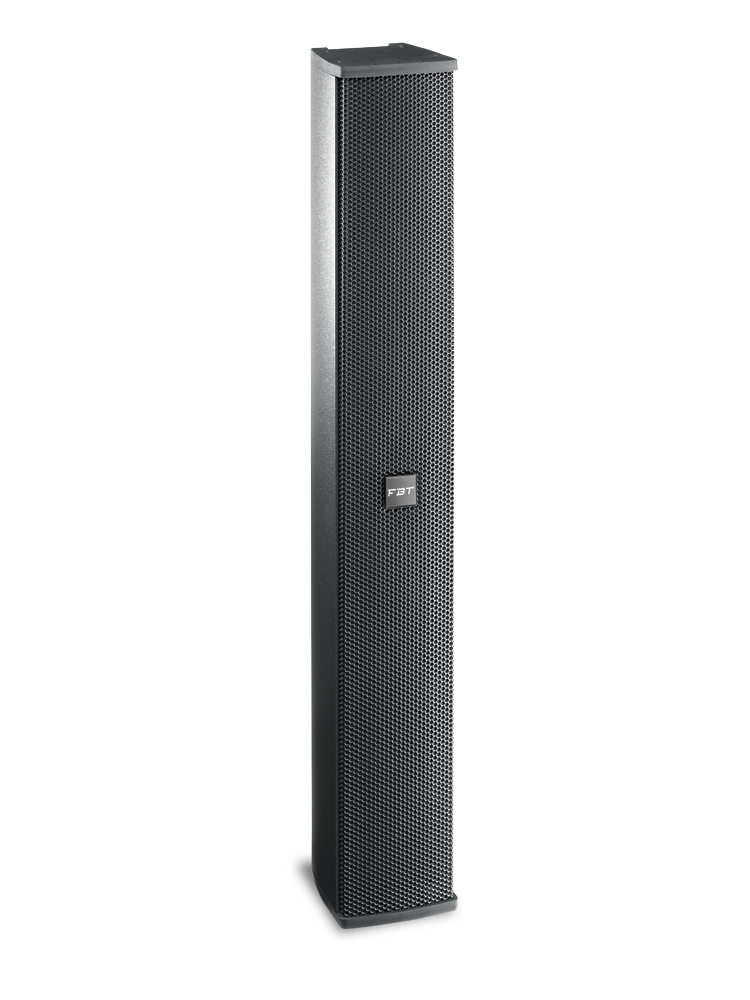

VERTUS CLA 803T

PASSIVE COLUMN ARRAY 8x3"

Weatherproof - EN54-24

Weatherproof - EN54-24

VERTUS CLA 803T

Click on the image to zoom

VERTUS CLA 803T

VERTUS CLA 803T

VERTUS CLA 803T

VERTUS CLA 803T

Download Accessories

Technical Specifications

Code:

41806 (Black) / 41823 (White)

Configuration:

1 way

Recommended amplifier:

200W RMS

Long Term power:

100W

Short term power:

400W

Nominal impedance:

8 Ohm

Frequency response:

150Hz - 20kHz -@6dB

Low Frequency woofer:

---

High frequency driver: (copy)

8x3'' - 0.75'' VC Fullrange Driver

Maximum SPL cont/peak:

112/118 dB

Dispersion:

125°x18° narrow - 110°x26° wide HxV (2kHz)

Input connector:

ceramic terminal block

Net Dimension (WxHxD):

100 x 704 x 125 mm / 3.9 x 27.7 x 4.9 inch

Net Weight:

5.5 Kg / 12.1 lb

Transport Dimension (WxHxD):

190 x 760 x 170 mm / 7.4 x 30 x 6.7 inch

Transport Weight:

6.2 Kg / 13.7 lb

Download

Datasheet

1 MB

User Manual

7 MB

GLL Ease & Focus

16.34 MB

GLL Narrow EN54-24 EVAC

4 MB

GLL Wide EN54-24 EVAC

7.79 MB

Declaration of Performance

1.59 MB

CPR

0.7 MB

Accessories

VT-T 3

Technical Draw

1.24 MB

VT-F 3

VT-F3

1 MB

VT-W 3

VT-W 3

1.21 MB

VT-WH 3

VT-Wh3

0.94 MB

VT-J 3

VT-J 3

1.44 MB

VT-JF 3

VT-J3

1.14 MB
