AX 3000

ANALOG AMPLIFIER

Click on the image to zoom

Download

At the top of the AX series, the AX 3000 delivers a massive 1500W + 1500W @ 4Ω, making it ideal for large format installations. Its enormous energy reserves and ultra-linear output stage ensure deep, tight bass and clean high-end extension, even when operating at maximum levels for extended periods. The AX 3000 can handle complex, reactive loads with ease, offering unmatched stability and long-term durability.

Effortless low-end punch and detailed mid/high definition
High-current output stage for difficult load conditions

Technical Specifications

Code:

39697

Both channel driven 8 ohm 1% THD Continous/impulsive:

880/950

Both channel driven 4 ohm 1% THD Continous/impulsive:

1300/1500

Bridge 8ohm 1% THD:

3600/3000

Input impedance:

20k balanced

Signal to noise ratio S/N:

>100dB

Total harmonic dist. (1kHz-4ohm):

<0.03%

Frequency response:

20Hz - 40KHz -6dB

Damping Factor:

>230

Class:

H-2 step

Maximum power consuption:

3600VA

Power supply voltage:

120 or 230 Vac 50/60 Hz

Protections:

short circuit /thermal

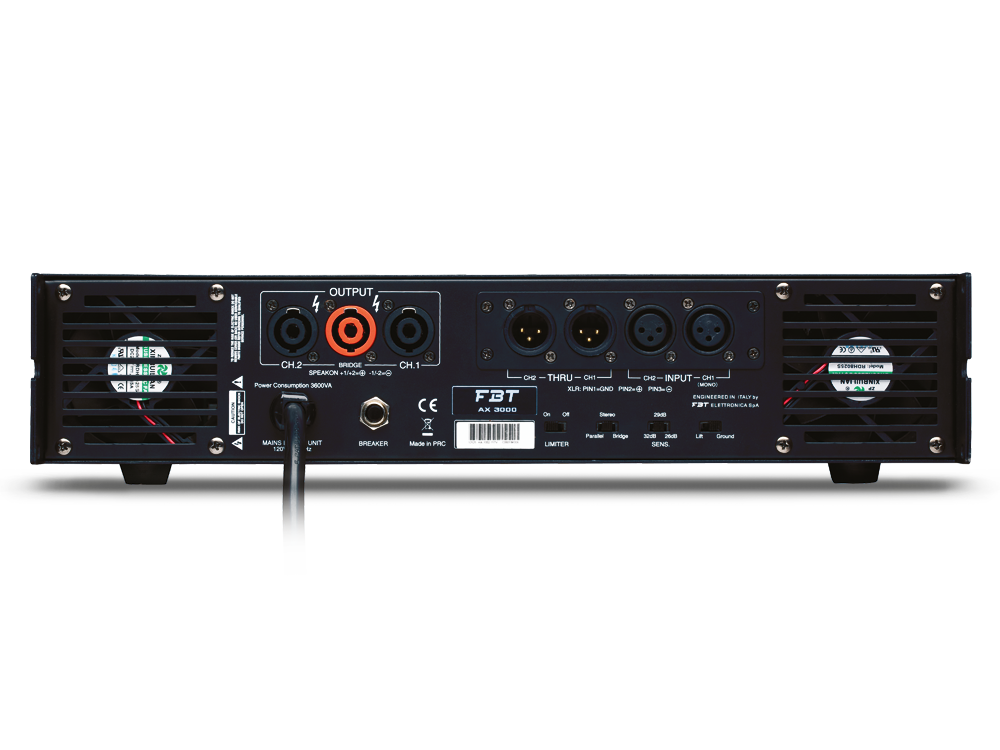

Connectors:

IN: XLR/Jack - OUT: Speakon

Net Dimensions (WxHxD):

482x88x458 / 19”x3.5”x18”

Download

Datasheet

0.42 MB

User Manual

23.65 MB
