HORIZON VHA 118.2SA

ACTIVE SUBWOOFER 18"

HORIZON VHA 118.2SA

Click on the image to zoom

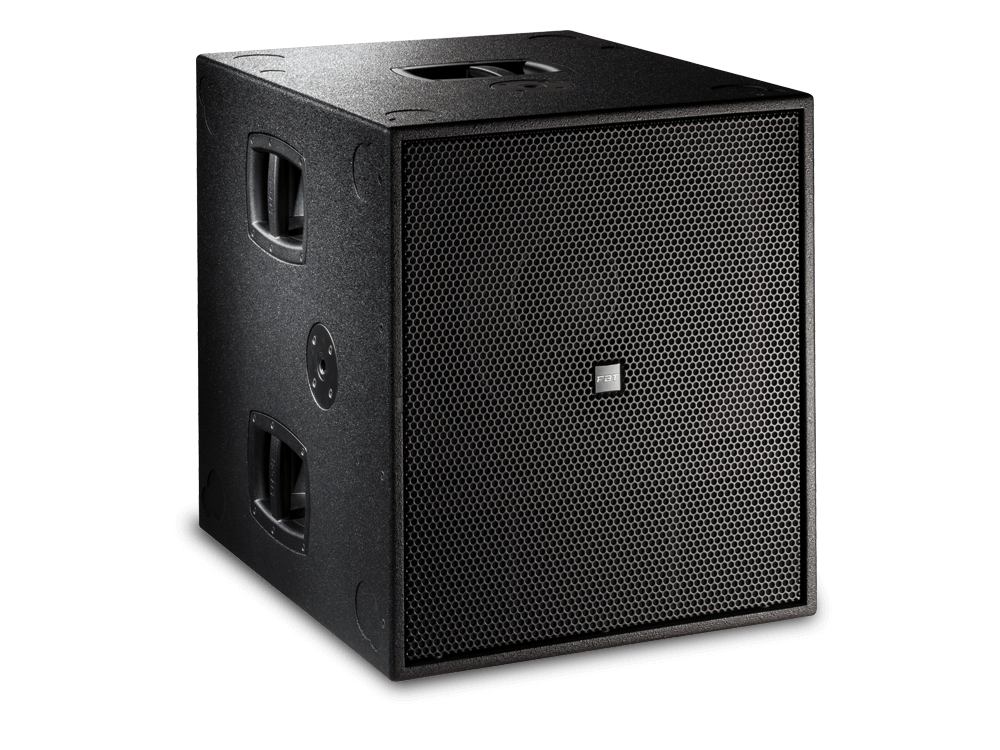

The VHA 118.2SA is an active bass-reflex subwoofer from FBT’s Horizon series, specifically designed to provide extended low-frequency support for VHA 406A. Engineered for high-output performance in professional sound reinforcement, it is ideal for large-scale events, touring systems, and fixed installations where deep, controlled bass is essential.

At its core is a high-excursion 18″ woofer with a 4″ voice coil, delivering a powerful and accurate low-end response down to 30Hz. The built-in Class-D amplifier supplies 2500W RMS, controlled via DSP offering six selectable presets. These presets optimize EQ settings, filtering, and cardioid configurations, enabling precise tuning based on system configuration and acoustic environment.

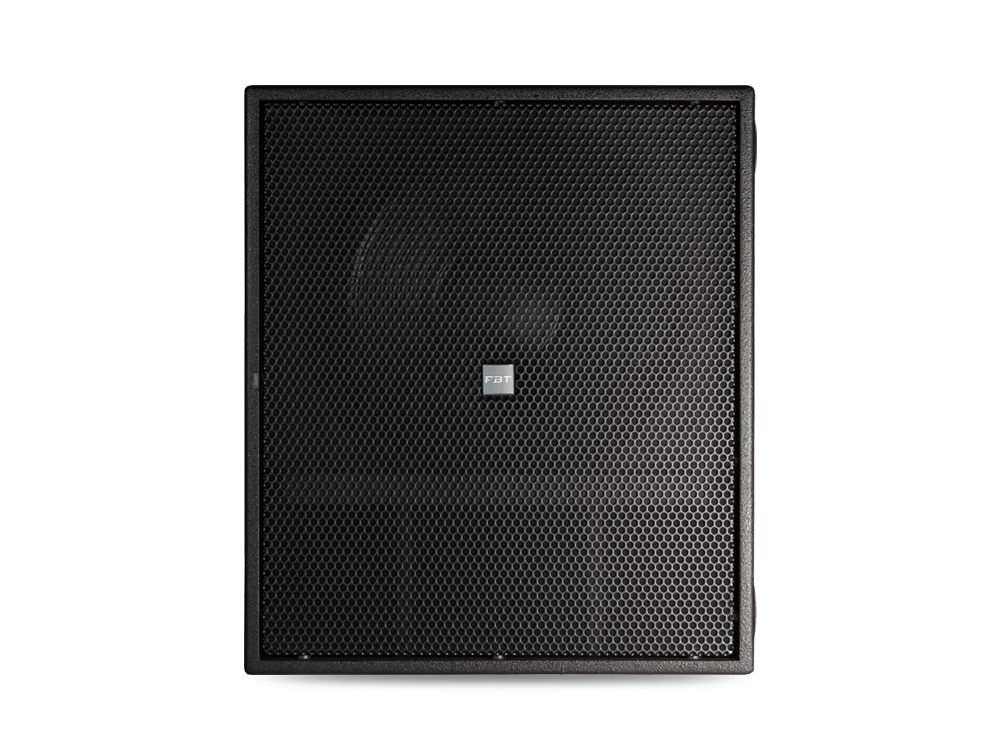

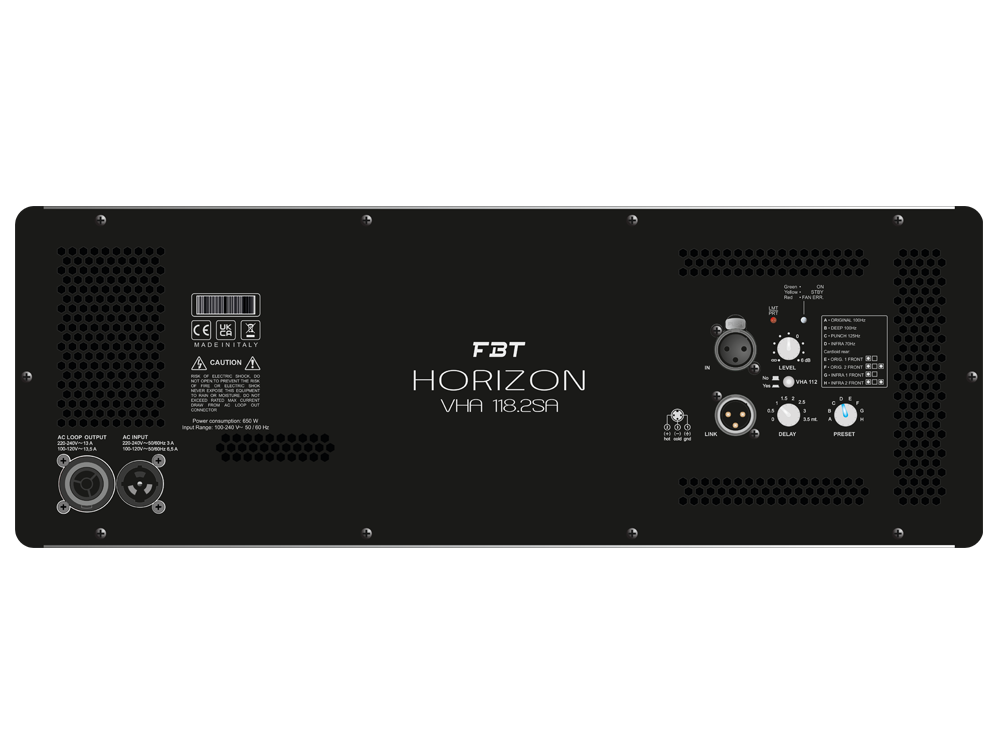

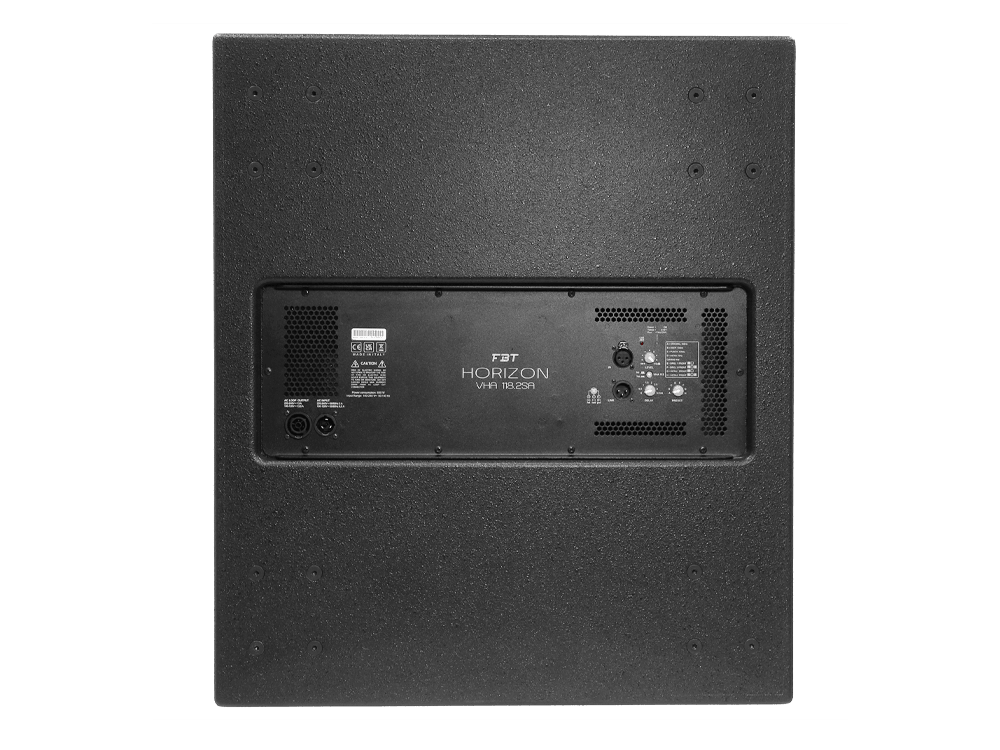

The VHA 118.2SA is housed in a robust 18mm birch plywood cabinet with a durable black scratch-resistant finish. The transducer is protected by a front powder-coated steel grille with internal acoustic fabric, ensuring both acoustic transparency and physical durability. The rear panel features a user-friendly interface with gain control, preset selection, and XLR input/output connections for seamless signal management.
The VHA 118.2SA delivers extended, powerful low-end support that perfectly complements the clarity and projection of the Horizon series.

  • Configuration: Active Bass Reflex
  • Low Frequency Woofer: 18”” – 3” VC
  • Built-in Amplifier: 2500W RMS
  • Maximum SPL: 143dB
  • Material: Baltic birch plywood

Technical Specifications

45690

Active bass reflex

2500W RMS

5000W

30Hz Preset dependant

18'' - 4'' coil

137 / 143dB half-space

Omnidirectional

22 Kohm

---

650W

XLR IN/OUT

5 m / 16.4 ft

611 x 711 x 720 / 24 x 28 x 28.3 inch

60.8 Kg / 134 lb

810 x 900x 710 / 31.8 x 35.4 x 27.9 inch

75 Kg / 165.3 lb

Accessories

VHA-C 118S

VHA-C 118S

VHA-CH 118S

VHA-CH 118S

VHA-RC 118

VHA-RC 118

VHA-T 118

VHA-T 118

VHA-B 406

VHA-B 406

MS-F 210

MS-F 210

MS-J 210

MS-J 210
