J 12
PASSIVE SPEAKER 12"
Click on the image to zoom
J12 is a passive full-range loudspeaker equipped with a 12″ woofer and 1″ HF compression driver. Designed for larger coverage areas, it delivers 300W RMS power handling and up to 127 dB SPL, making it suitable for foreground music, monitoring, and small live reinforcement. Connections are made via Speakon IN/OUT. Its polypropylene enclosure is lightweight and rugged, with integrated handle, pole mount socket, and mounting points for fixed installations. The J12 maintains flat frequency response and clean output for music and vocal sources alike.
- Configuration: 2 way
- Low Frequency Woofer: 1 x 12” – 2” VC
- High Frequency Driver: 1 x 1” – 1” VC
- Recommended Amplifier: 300W RMS
- Maximum SPL: 127dB
- Material: Polypropylene
Technical Specifications
37832
2 way
300W RMS
150W
600W
8 Ω
55Hz - 20HHz -6dB
12'' - 2'' VC
1'' - 1'' VC
98dB
123 / 127dB
90°x60°
2 KHz
45hz - 24dboct
FBT DSP Processor
2 x speakon NL4M in & Thru
410x663x387 mm / 16.14x26.10x15.23 inch
14.8 Kg / 37.9 lb

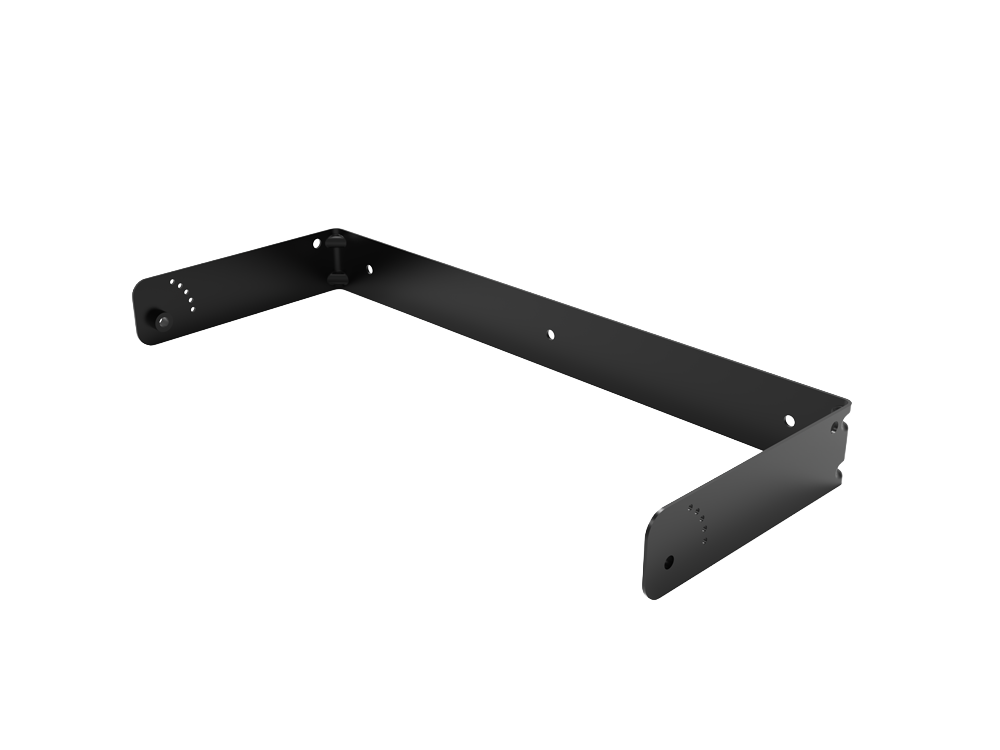

Accessories
