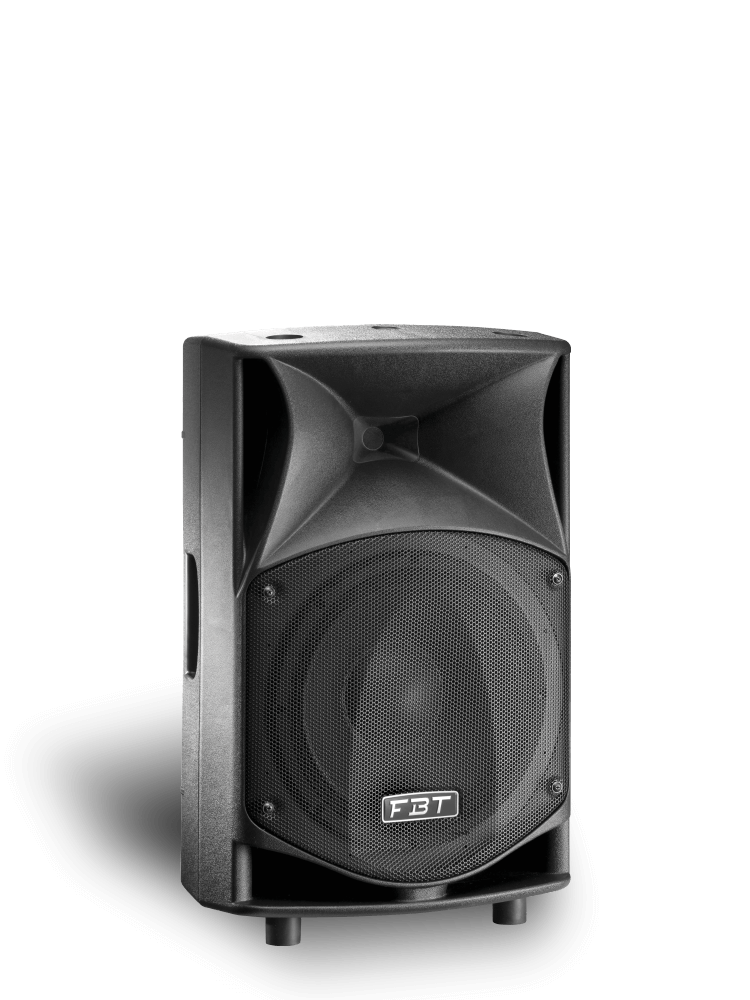

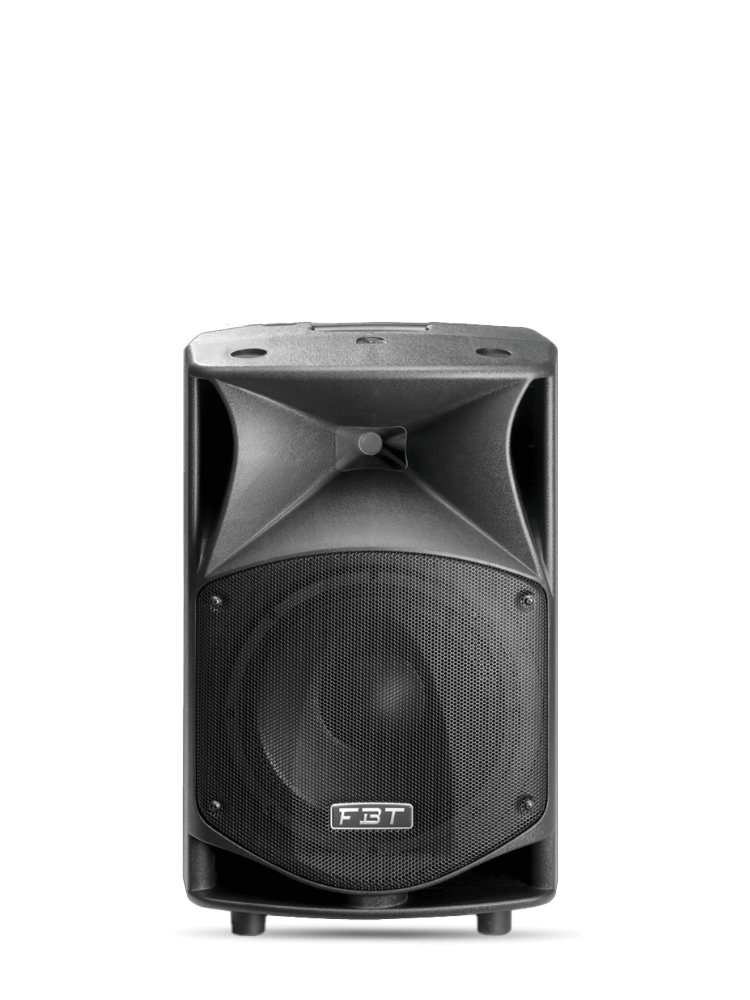

JMAXX 110A
ACTIVE POINT SOURCE 10"
Click on the image to zoom
The Jmaxx 110A is an active 2-way speaker designed for versatility in portable sound reinforcement and fixed installations. Equipped with a 10″ custom woofer and a 1″ B&C compression driver with a 1.4″ voice coil, it delivers articulate midrange, controlled bass, and smooth high-frequency response.
The integrated Class D amplifier provides 700W RMS for low frequencies and 200W RMS for the highs, with 4 EQ presets for different use scenarios. The constant directivity horn (90° x 60°) allows flexible mounting and precise coverage. The polypropylene cabinet ensures durability, light weight, and acoustic consistency, with integrated handles and M10 rigging points, and a 35mm pole mount.
- Configuration: 2-way active bass reflex design
- Low Frequency Woofer: 1 x 10“ – 2” VC
- High Frequency Driver: 1 x 1“- 1.4” VC
- Maximum SPL : 129.5 dB
- Material: Polypropylene
Technical Specifications
42604
2 way
700 / 200W RMS
58Hz - 20kHz -6dB
10" - 2" coil
1" - 1" coil
123.5 / 129.5dB
90° x 60° H x V
22 kOhm
XLR - Jack
5 m / 16,4 ft
320 x 550 x 275 mm / 12.6 x 21.6 x 10.8 inch
11.5 Kg / 25.3 lb
408 x 650 x 360 mm / 16 x 25.5 x 14.2 inch
13.5 Kg / 29.7 lb
Accessories
