LIBRA 5CT

PASSIVE PENDANT SPEAKER 5"

LIBRA 5CT

Weatherproof - EN54-24

LIBRA 5CT

Click on the image to zoom

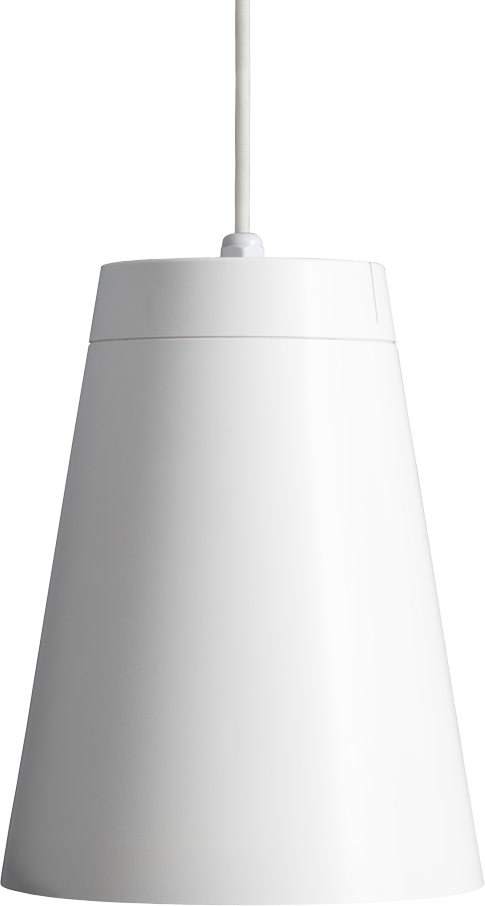

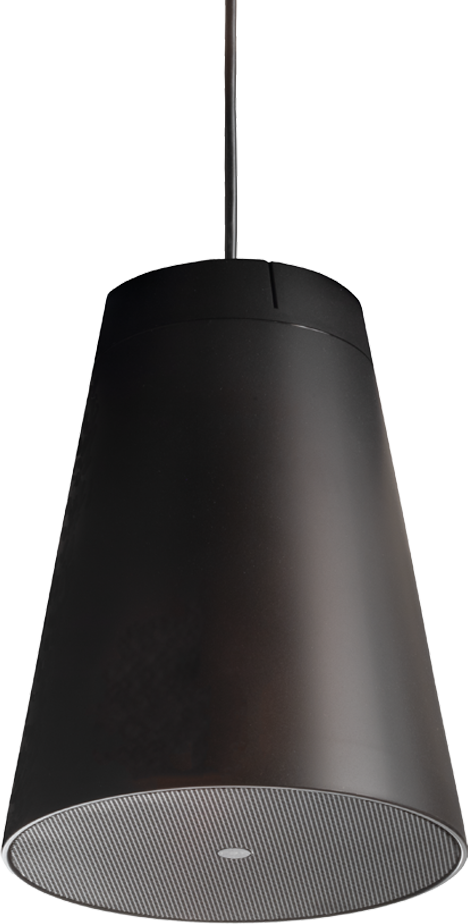

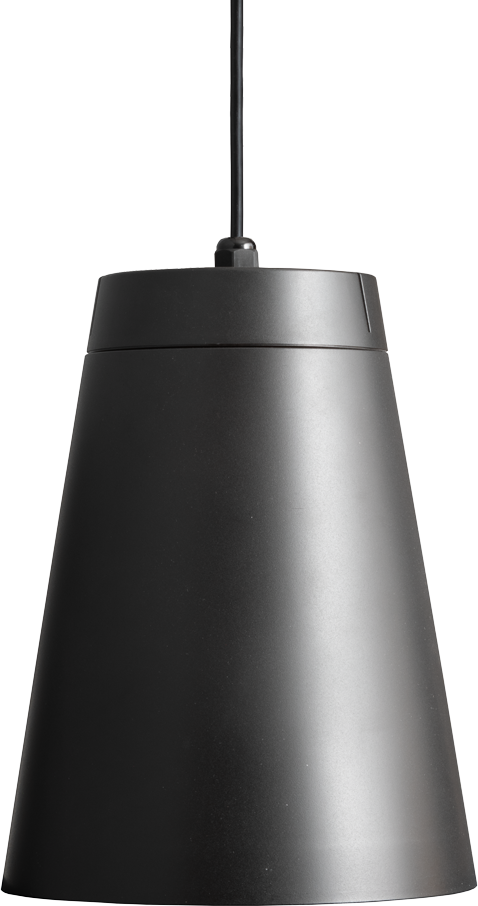

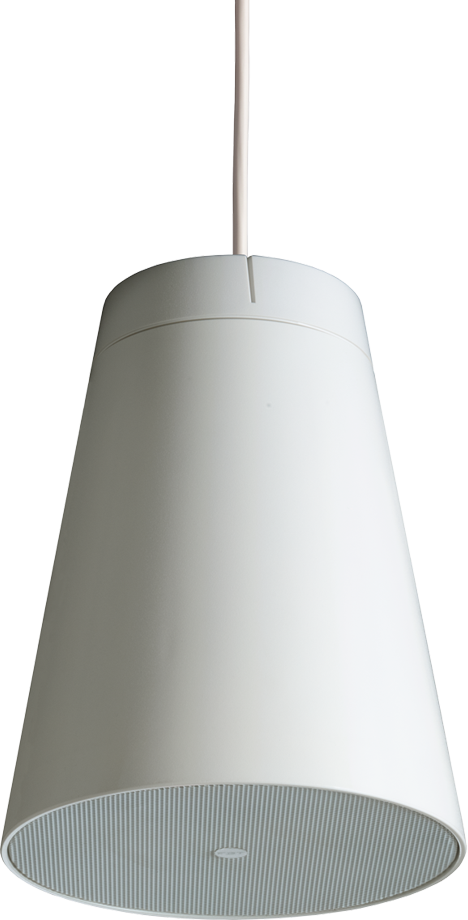

The LIBRA 5CT speaker feature lightweight, sturdy ABS molded enclosures. Available in black or white finish, the LIBRA 5CT offers fixed installations an elegant design that seamlessly integrates into any decor or architectural environment. This two-way coaxial design incorporates a 5” low-frequency woofer and a 1” high-frequency driver, delivering clear, high-fidelity sound for both speech and music applications. With a frequency range of 80Hz to 20kHz and a maximum SPL of 114dB, the LIBRA 5CT ensures consistent performance across a variety of commercial, hospitality, and corporate spaces.

The speaker is equipped with a switchable 70V/100V line transformer featuring selectable power taps from 10W to 64W, as well as a 15Ω low-impedance mode, allowing flexible integration into distributed audio systems. The speaker is mounted using a rear connection cable, with all wiring handled via a terminal block connector concealed behind the rear cover for a clean, professional installation.

LIBRA 5CT is also EN54-24 certified, ensuring that it meets the highest standards for voice alarm system for fire detection.

  • Configuration: 2 way coaxial
  • Low Frequency Woofer: 1 x 5” – 1.5” VC
  • High Frequency Driver: 1 x 1” – 1” VC
  • Recommended Amplifier: 120W RMS
  • Maximum SPL: 117dB
  • Material: Polypropylene

Technical Specifications

45511 (Black) - 45483 (White)

2 way coaxial

120W RMS

60W

240W

16Ohm

80Hz - 20KHz @-6dB

5'' - 1.5'' VC

1'' - 1'' VC

93dB

114 / 117 dB

90° HxV

3 kHz

70Hz - 24dBoct

FBT DSP Processor

Euroblock in & throu

Ø215 x 275 mm / Ø8.4 x 10.8 inch

4 Kg / 8.8 lb
