MITUS 118S
PASSIVE SUBWOOFER 18"
Click on the image to zoom

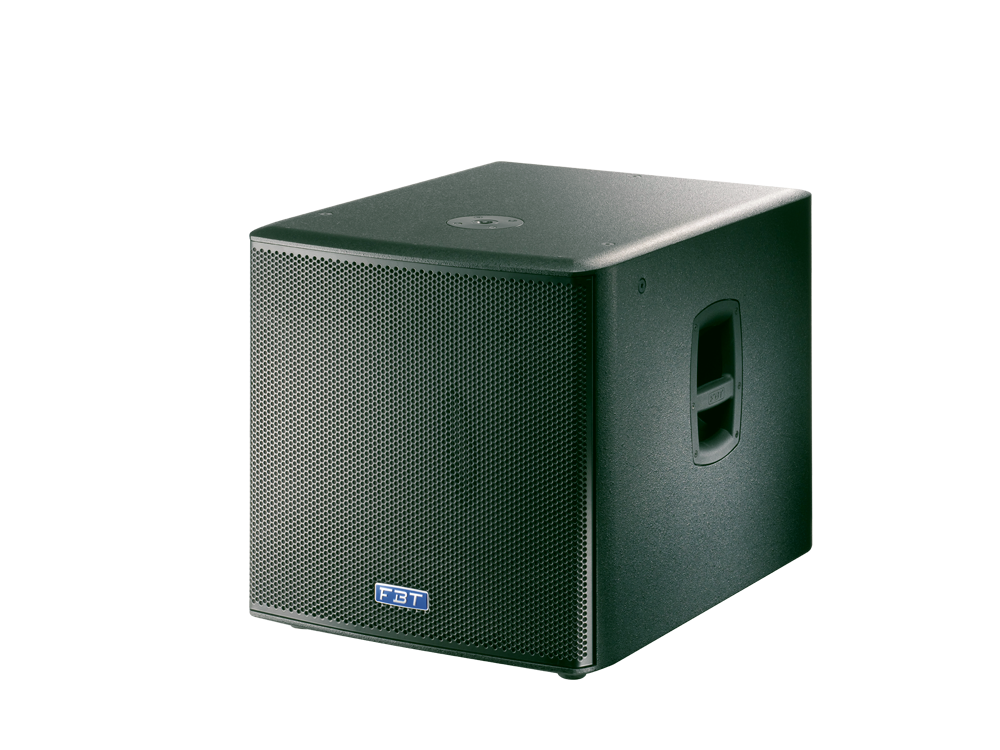

Mitus 118S is a compact 18″ passive band-pass subwoofer designed as the perfect low-frequency extension for the Mitus series, particularly when paired with the mitus 206LA in ground-stacked configurations using the optional metal base. It delivers powerful and controlled bass response with a peak SPL of 138 dB and extended frequency range down to 36Hz. Constructed from 18 mm birch plywood with a scratch-resistant black coating, the cabinet includes eight M10 fly points, an M20 top-mounted pole socket, and two custom FBT aluminum handles. Recommended power amplifier 1000W RMS @ 4 Ohm.
- Configuration: band pass
- Low Frequency Woofer: 1 x 18″ – 3″ VC
- Recommended Amplifier: 1000W RMS
- Maximum SPL: 138 dB
- Material: 18mm birch plywood
Technical Specifications
39716 (FSC) / 39683 (FS)
Hybrid band pass subwoofer
1200W RMS
600W
2400W
8 Ohm
33Hz - 250Hz @-6dB
8'' - 3.5'' coil
135 / 139dB half space
Omnidirectional
FBT DSP Processor
2 x Speakon NL4
576 x 540 x 756 mm / 22.7 x 21.2 x 29.7 inch
810 x 705 x 705 mm / 31.8 x 27.7 x 27.7 inch (with pallet)
55.5 Kg / 122.3 lb
