MITUS 212FS
PASSIVE SUBWOOFER 2x12"
Click on the image to zoom

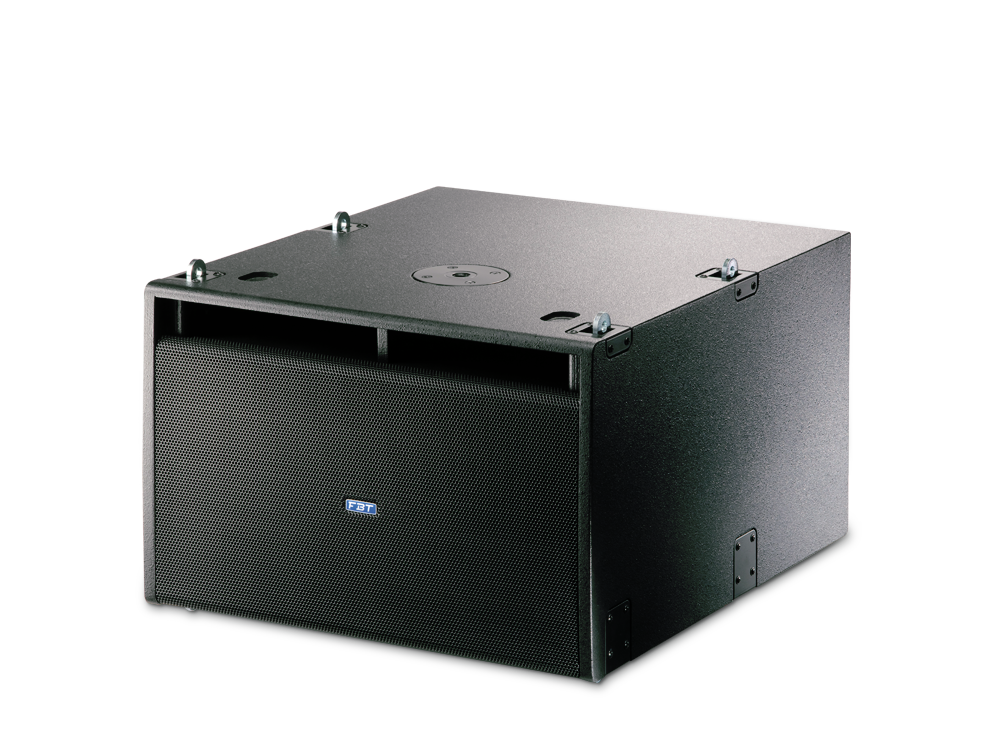

Mitus 212FS is a compact, high-performance passive subwoofer designed to extend low-frequency response in modular Mitus flown systems. Featuring two 12″ custom woofers with 3″ voice coils, it delivers punchy, responsive bass with high SPL and fast transient handling. Built in 15mm birch plywood with integrated flyware, it is engineered for use in suspended arrays alongside mitus 206L modules or as part of ground-stacked setups. The mitus 212FS is designed to be powered by external amplification and processing with FBT presets. Input connectors are parallel-wired Neutrik NL4 Speakons.
- Configuration: band pass subwoofer
- Low Frequency Woofer: 2 x 12″ – 3″ VC
- Recommended Amplifier: 1000W RMS
- Maximum SPL: 138 dB
- Material: Birch plywood
Technical Specifications
32086
Vented bass pass
1000W RMS
500W
2000W
8 Ohm
50Hz - 250Hz -6dB
2 x 12'' - 3'' coil
134 / 138dB half-space
Omnidirectional
FBT DSP Processor
2 x speakon NL4
574 x 420 x 660 mm / 22.6 x 16.5 x 26 inch
785 x 520 x 710 mm / 30.9 x 20.4 x 27.9 inch
39.5 kg / 87 lb
