MITUS 215

PASSIVE POINT SOURCE 2x15"

MITUS 215

Click on the image to zoom

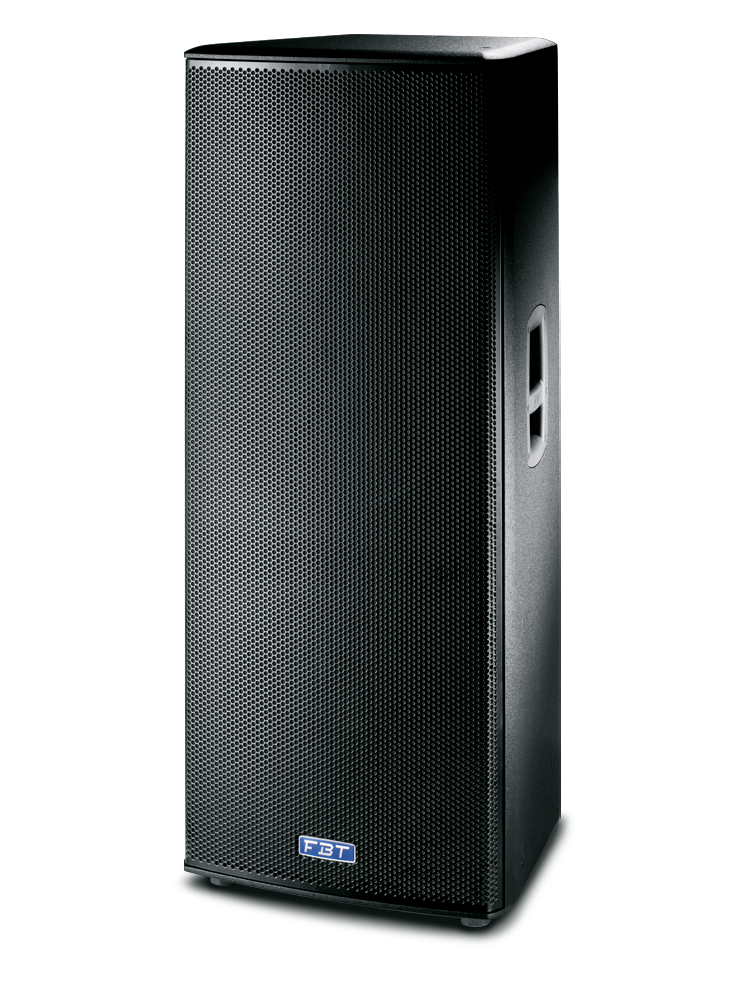

The Mitus 215 is a high-performance passive loudspeaker engineered for professional sound reinforcement applications. It features two 15” B&C neodymium woofers with 3” voice coils, paired with a 2” exit B&C neodymium compression driver with a 2.5” voice coil. A rotatable horn with 60° horizontal and 40° vertical coverage ensures optimal dispersion in both horizontal and vertical installations. Capable of handling up to 1600W at 4Ω and delivering a maximum SPL of 138 dB, the Mitus 215 offers exceptional output and full-range clarity. The high-quality internal passive crossover includes “soft-trip” circuitry to protect both LF and HF transducers.

Built from durable 15 mm birch plywood and coated in a scratch-resistant black finish, the cabinet incorporates twelve M10 fly points, a 35 mm pole socket, and two ergonomic aluminum handles designed by FBT. Connections are managed via Speakon NL4 connectors for input and link-out.

With its powerful dual-woofer configuration, the Mitus 215 is ideal for front-of-house use in demanding live sound scenarios or fixed installations requiring high SPL and defined coverage.

  • Configuration: 2 way
  • Low Frequency Woofer: 2 x 15” – 3” VC Neodymium
  • High Frequency Driver: 2” – 2.5” VC Neodymium
  • Recommended Amplifier: 1600W RMS
  • Maximum SPL: 138dB
  • Material: Baltic birch plywood

Technical Specifications

35963

2 way

1600W RMS

800W

2800W

4 Ohm

47Hz - 20Khz @-6dB

2 x 15'' - 3'' coil

2'' - 3'' coil

103dB

134 / 138dB

60° x 40° H x V

1.2 KHz

40hz - 24dB oct

FBT DSP Processor

2 x speakon NL4

493 x 1240 x 470 mm / 19 x 48.8 x 18.5 inch

50 Kg / 110.2 Lb

Accessories

MT-C 215

MT-C 215
