MIURA 4004I

DIGITAL AMPLIFIER

MIURA 4004I

Click on the image to zoom

Download Related Products

The MIURA 4004I is a high-power 4-channel Class D amplifier housed in a robust 2U chassis, designed for fixed installations and demanding AV applications. It delivers up to 4×1000 W at 4 Ohm, 4×900 W at 70V, or 2×2000 W at 100V in bridge mode, with asymmetric output distribution per channel. The amplifier supports Single-Ended, Bridge, and Parallel modes, offering direct drive to both low and high-impedance systems with extended headroom and efficiency. Network control is enabled via TCP/IP (AES70 compatible) and fully integrated with INFINITO software. A 4-channel Dante receiver, AES3 digital audio input/output with link, and EtherCON ports provide full network integration. The front OLED display with encoder enables onboard configuration, while rear Euroblock I/O and GPIO ensure secure and professional installation.

  • 4×1000W at 4Ω | 4×900W at 70V | 2×2000W BTL (100V or 8Ω)

  • Class D topology with ultra-low distortion

  • Full asymmetric loading with SE and BTL operation

  • TCP/IP control (AES70) via INFINITO software

  • 4-channel Dante audio receiver (24-bit, 48–96kHz)

  • AES3 digital audio input with link

  • OLED display with push encoder for local setup

  • Auto-Standby / Wake function

  • Universal SMPS with Power Factor Correction

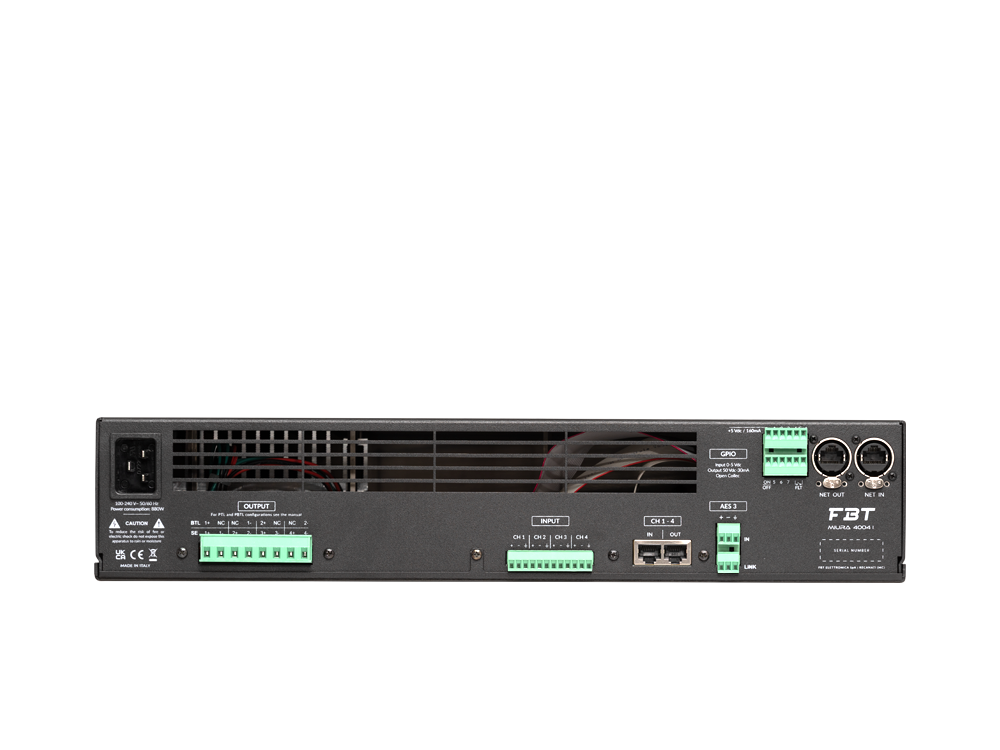

  • Euroblock I/O and 8-channel GPIO

Technical Specifications

45513

20 - 20k (-0.5dB , 3dB below rated power)

Class D - PWM modulator with ultra low distortion

Short Circuit, DC, Undervoltage, Temperature, Overload

482 x 88 x 504 mm / 18.97 x 3.46 x 19.84 inch 2U Rack Mount

6.7 Kg / 14.77 Lb
