MUSE 118FSND / 118FSN

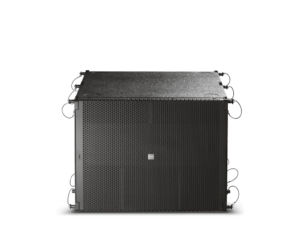

MUSE 118FSND is an active flyable subwoofer specifically designed to integrate seamlessly with MUSE 210L line array systems, providing low-frequency reinforcement in both flown and ground-stacked setups. Ideal for concert touring, live events, and high-end installations, it delivers deep, phase-coherent bass performance while maintaining compact dimensions and rigging compatibility. The enclosure houses an 18” B&C neodymium high-excursion woofer with a 3.5” voice coil, mounted in a hybrid band-pass design to optimize output and minimize distortion. Frequency response: 33Hz – 100Hz. Maximum SPL: 140dB. The on-board Class-D amplifier delivers 1600W RMS, controlled by a powerful DSP with 3 user-selectable presets, including standard and cardioid configurations for flexible deployment. Rear panel includes balanced XLR IN/OUT, rotary selector with OLED display for DSP control, and gain control with signal/limiter LEDs.

INSTALLATION / RIGGING
• The MUSE 118FSND features a fully integrated flyable design, compatible with the MUSE 210L rigging system, allowing seamless integration in flown arrays using the MS-F 210 flybar.
• The amplifier and grille are reversible to accommodate rear-facing cardioid setups without altering system appearance.
• The cabinet is constructed from 15mm birch plywood, finished with scratch-resistant black coating, and equipped with ergonomic handles, front grille with protective cloth, and recessed hardware for tight rigging.
• Compatible with MS-F 210 (flybar) and KBW-1004S (4 wheels kit with brake).

CONFIGURATIONS
• VERTICAL CONFIGURATION: Can be flown directly above or alongside MUSE 210L arrays for full-range reinforcement.
• GROUND-STACKED CONFIGURATION: Can be used in ground stacks, either stand-alone or paired with tops, maintaining directional control and low-end extension.
• CARDIOID SETUPS: Using cardioid presets and reversible modules, the MUSE 118FSND provides effective rear rejection for noise-sensitive environments or stage applications.

NETWORK / INFINITO
At the heart of the system is the powerful amplification module with integrated TCP/IP network interface. Built on the OCA ALLIANCE AES70 standard, it ensures seamless communication with the INFINITO System Management Suite software and receives 24-bit, 48–96kHz digital audio streaming from any Dante-compatible device. Housed in a robust aluminum chassis with intelligent forced ventilation, the module features an OLED display with encoder for easy parameter adjustments. A high-brightness blue front LED allows remote identification of the device, even under daylight conditions.
