- Configuration: Bass reflex
- Low Frequency Woofer: 1 x 18” – 3” VC
- Built-in Amplifier: 1200W RMS
- Maximum SPL: 137dB
- Material: Baltic birch plywood
SUBLINE 118SA
ACTIVE SUBWOOFER 18"
Click on the image to zoom

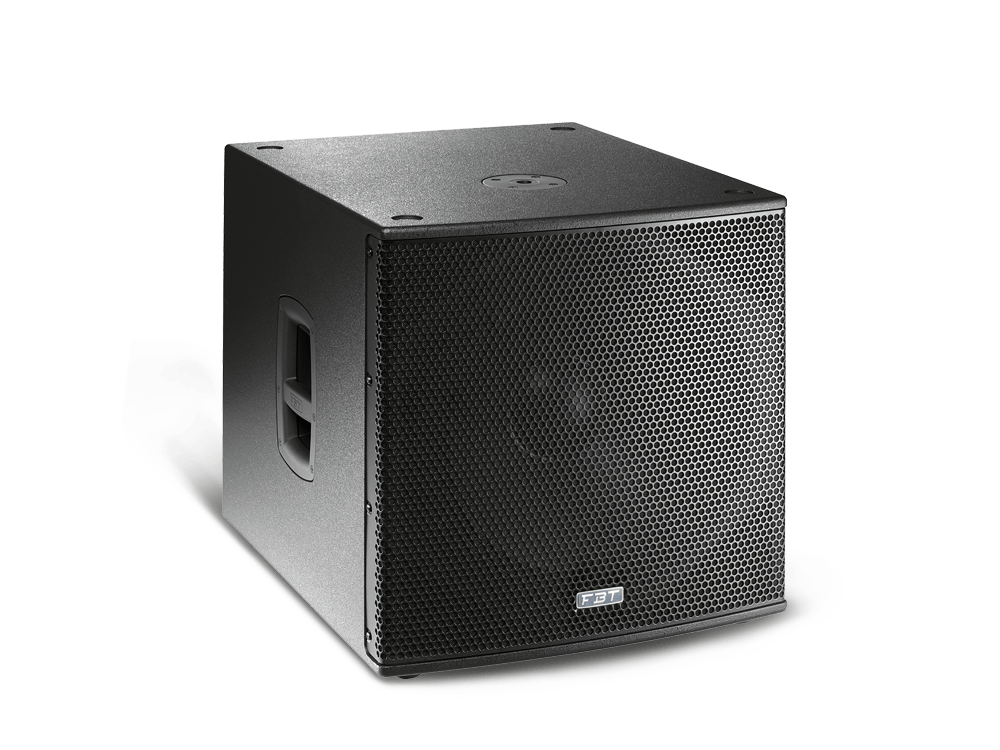

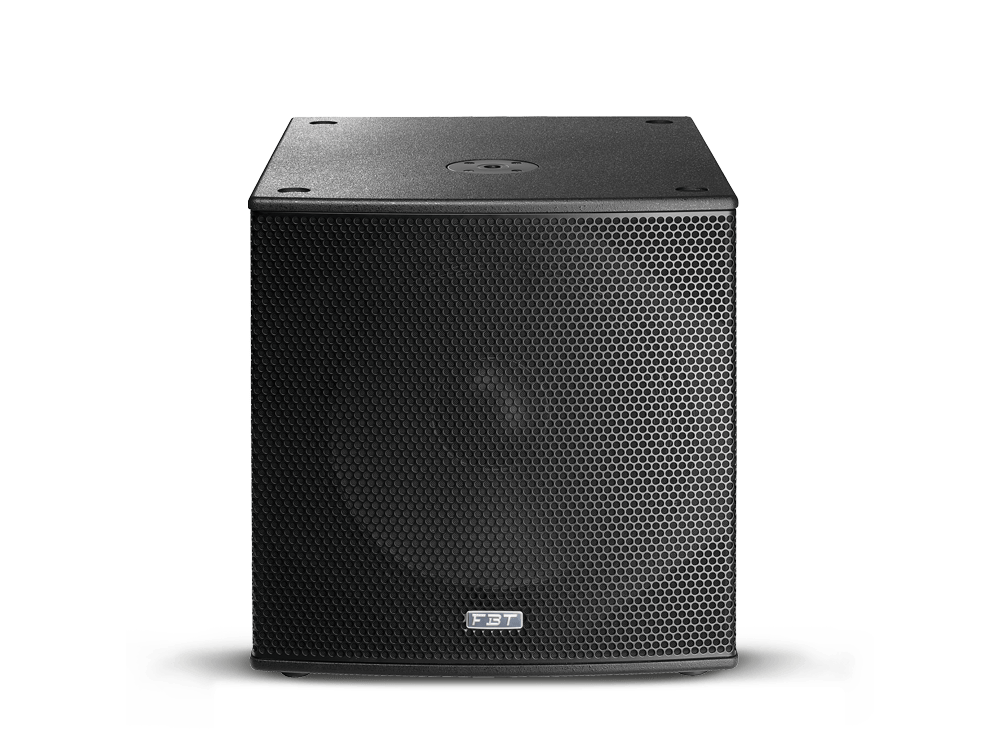

The SUBline 118SA is a high-powered active subwoofer designed for professional sound applications where maximum bass impact is required. It features an 18” high-excursion woofer with a 3” voice coil, powered by a 1200W Class D amplifier, delivering thunderous, precise low frequencies.
The robust birch plywood enclosure with a scratch-resistant finish includes ergonomic handles, an M20 top mount, and heavy-duty hardware for portable or installed use. Built-in DSP with 6 selectable DSP presets, ensures seamless integration with FBT active tops, making the SUBline 118SA the ideal choice for live events, DJ setups, and large installations.
The SUBline 118SA offers balanced stereo XLR IN and LINK OUT, volume adjustment, delay and phase inversion for complete system optimization.
Technical Specifications
41221
1 way Reflex
1200W RMS
2400W
33Hz-100Hz -6dB
18 - 3 coil inch
134 / 137dB half-space
Omnidirectional
22 Kohm
100Hz
1050 VA
XLR IN/OUT
7 m / 16.4 ft
555 x 572 x 666 mm / 21.8 x 22.5 x 26.2 inch
43.5 Kg / 95.9 lb
800 x 790 x 600 mm / 31.5 x 31.1 x 23.6 inch
51 Kg / 112.4 lb
