VENTIS 112MA

Ventis 112MA is a bi-amplified active monitor crafted with a birch plywood cabinet, scratch resistant enclosure and internal bracing.

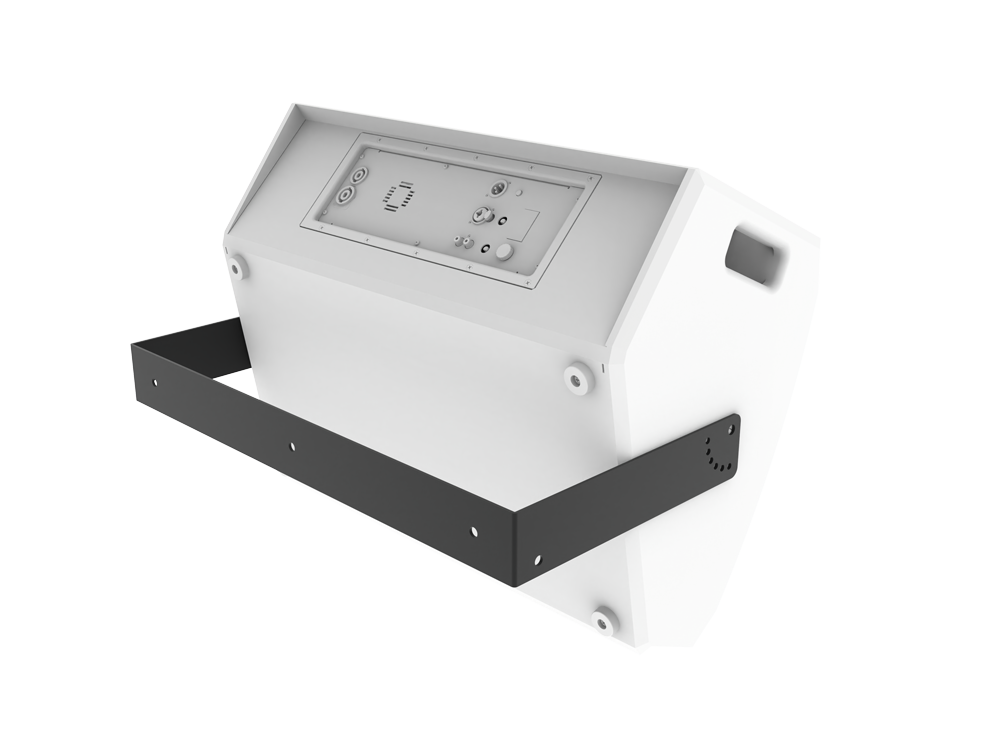

The 90° constant directivity of this coaxial monitor with 12″ LF / 1″ HF delivers in the listening area up to 126/132 dB SPL. Frequency response from 55Hz to 20kHz. Power for the active Ventis models: switching mode amplifier module LF/HF of 700W/200W RMS in Class-D topology designed in Italy. Equipped with B&C custom transducers. Includes two wooden handles for easy transportation. Equipped with 1.38″ pole mount socket. The flexibility of this monitor makes it as suitable for fixed installation as it is for use on the stage as FOH, thanks to a 1.38″ pole mount socket and inserts for optional U bracket.

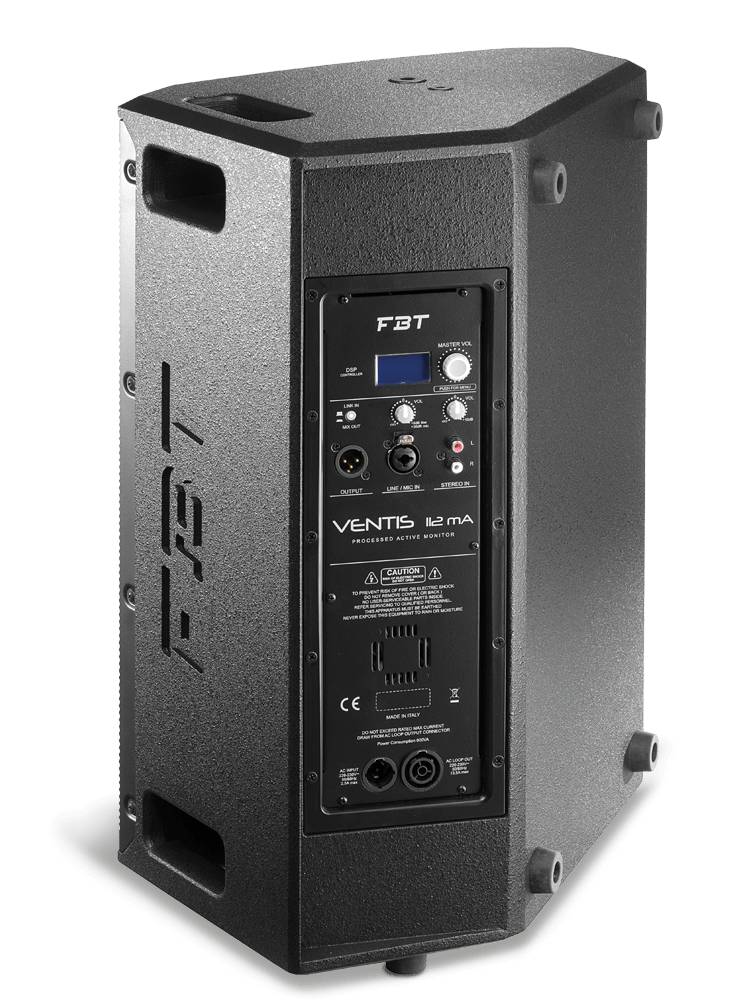

The on-board DSP is located on the rear of each enclosure, a menu-driven system is navigated via a single rotary control with push-to-select functionality. Users can choose between a total of 6 pre-optimised settings: Original, Hi-cut/Drumfill, Lo-cut/Twin, Touring, Vocal e FOH. Besides, 2 further slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, a low, medium, high EQ and a delay line between 0 and 10 meters. Users can also choose between three limiter modes: MIN, NORMAL or MAX.

The Ventis series offers a wide range of loudspeakers built in birch plywood, as suitable for fixed installation as they are for use on stage. The series comprises five point sources and two monitors available in either passive or bi-amplified active versions.
