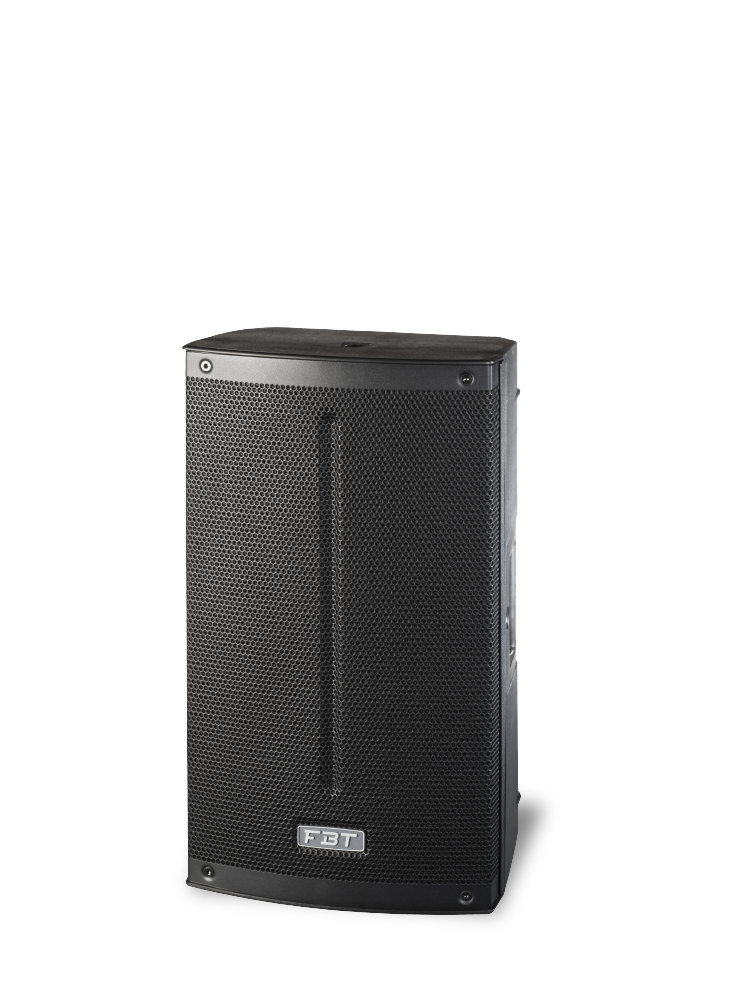

X LITE 110

PASSIVE POINT SOURCE 10"

Click on the image to zoom

Download Accessories

Technical Specifications

Code:

46167

Configuration:

2 way

Recommended amplifier:

350W RMS

Long Term power:

175W

Short term power:

700W

Nominal impedance:

8Ohm

Frequency response:

65Hz - 20kHz -6dB

Low Frequency woofer:

10'' - 2.5'' coil

High frequency driver:

1'' - 1.4'' coil

Sensitivity (@1W/1m):

96dB

Maximum SPL cont/peak:

121 / 124dB

Dispersion:

90° x 60° H x V

Crossover Frequency:

2kHz

Recommended HP filter:

HP 55Hz - 12/24dB oct

Recommended external filter:

FBT DSP Processor

Input connector:

2 x Speakon NL4

Net Dimension (WxHxD):

293 x 536 x 300 mm / 11.5 x 21.1 x 11.8 inch

Net Weight:

12.8 Kg / 28.2 Lb

Download

Datasheet

0.59 MB

User Manual

11.58 MB

Accessories

FMS 220BKS

XL-C 10

MSA 220BKS

MSA 300BK

XL-UV10

XL-UV10

1.42 MB

XL-UH10

XL-UH10

1.77 MB
