- Configuration: 2 way
- Low Frequency Woofer: 1 x 12” – 3” VC
- High Frequency Driver: 1 x 1.4” – 2.5” VC
- Recommended Amplifier: 1000W RMS
- Transformer (optional): 100V – 300W
- Maximum SPL: 133dB
- Material: Baltic birch plywood

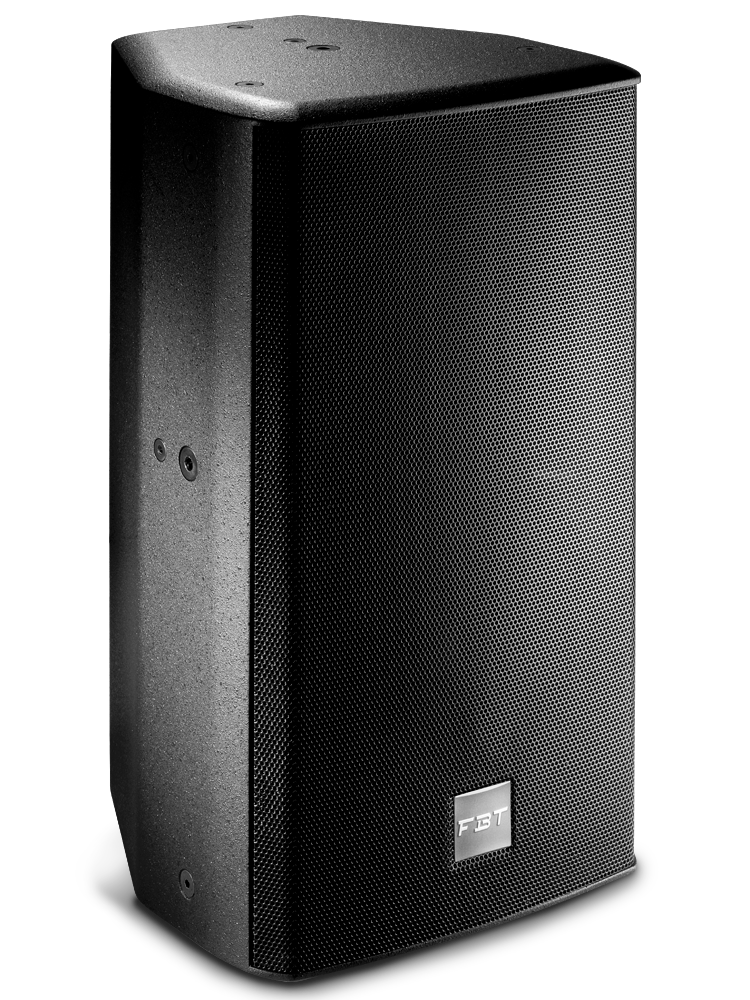

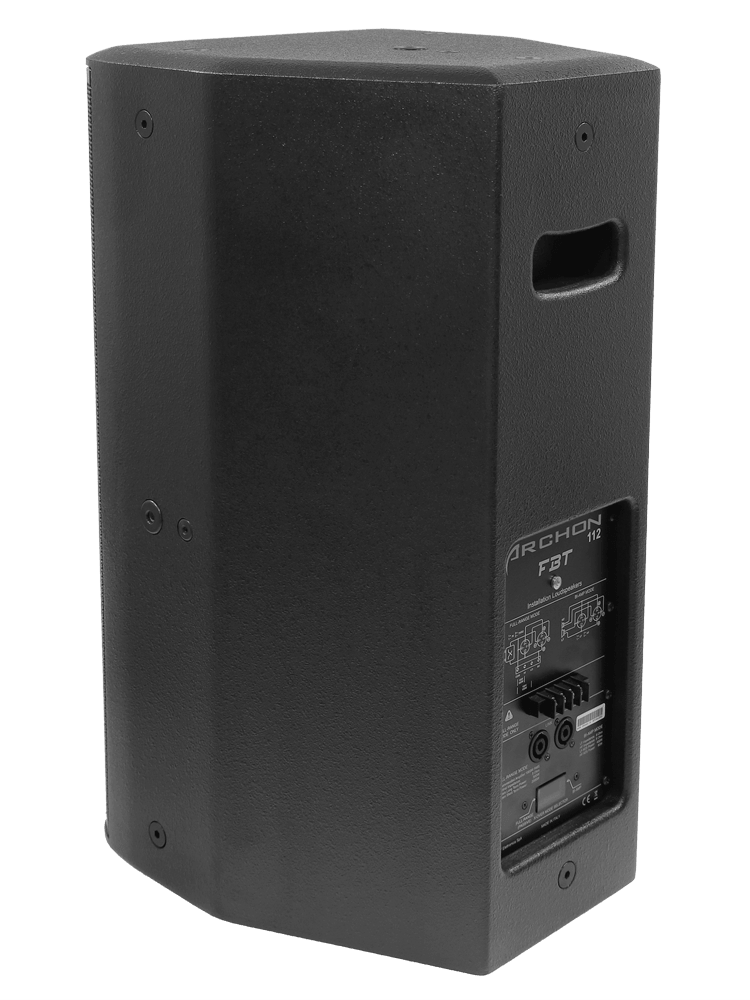

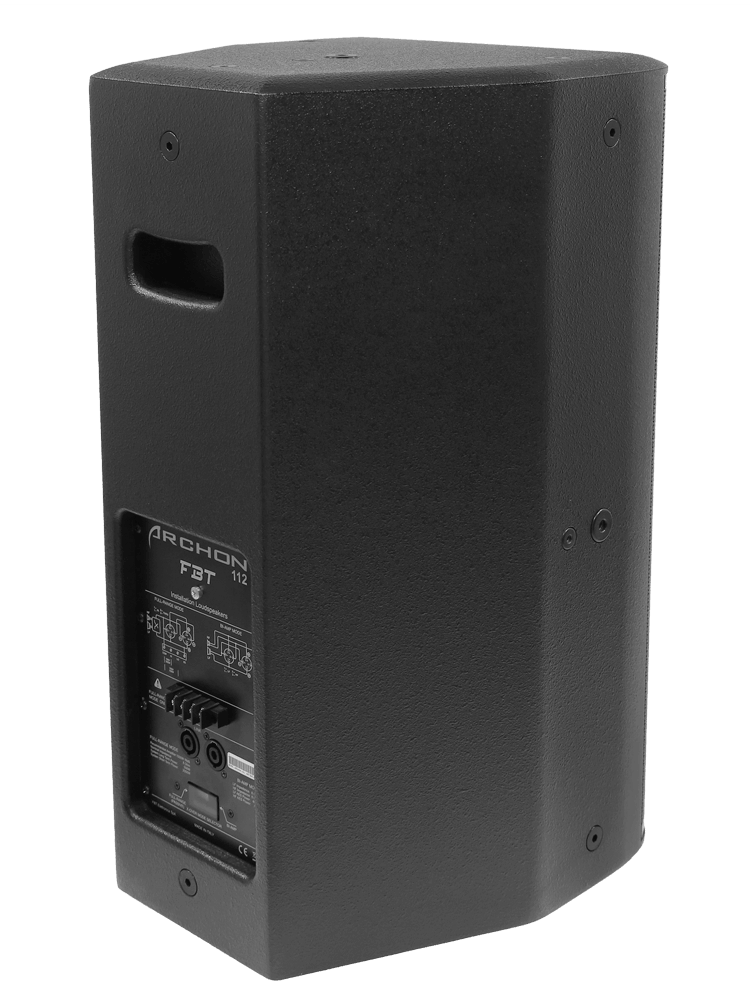

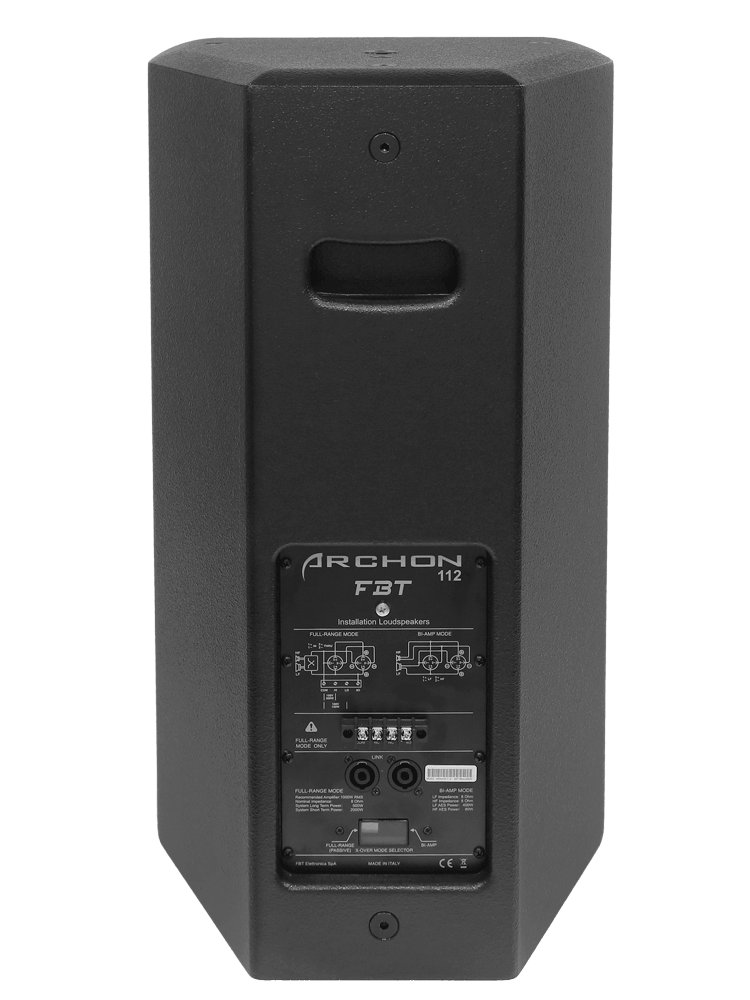

Archon 112 is a full range/bi-amp 2 ways point source with a crafted birch plywood cabinet.
Equipped with custom-designed high-excursion B&C 12″ LF woofers and 1.4″ HF compression drivers, delivers sound pressure levels of up to 129/133 dB SPL in the listening area. This loudspeaker includes rotatable horns for optimal horizontal or vertical dispersion, providing 70° H x 50° V coverage. Frequency response extends from 50Hz to 18kHz. An optional 100V line transformer (300W) is available. Recommended amplifier power: 1000W RMS. Installation versatility is ensured through 12 integrated M10 threaded rigging points, complemented by flexible mounting hardware and a wide selection of accessories. A rear pocket handle facilitates easy lifting and cabinet installation.
The wide hand made customizations offered made the Archon series a cult between the FBT products. Not only different RAL paint colors, but also paint finishes like glossy, matt, textured and more assure the finest camouflage in the environment. The acoustically transparent steel grilles with antidust protection cloth complete this design shaping the perfect speakers for indoor spaces. The whole Archon series is characterized by extremely low distortion, fast responding dynamics and wideband response and it has been designed for applications that require high SPL levels. The rotatable logo badge follows vertical or horizontal installation.
36254
2 way
1000W RMS
500W
2000W
8 Ohm
50Hz - 18KHz -6dB
12'' - 3'' coil
1.4'' - 2.5'' coil
99dB
129 / 133dB
70° x 50° H x V
1.6 KHz
40hz - 24dB oct
FBT DSP Processor
4-pin Euroblock / 2 x Speakon
365 x 660 x 380 mm / 14.3 x 25.9 x 14.9 inch
25.4 Kg / 56 lb
