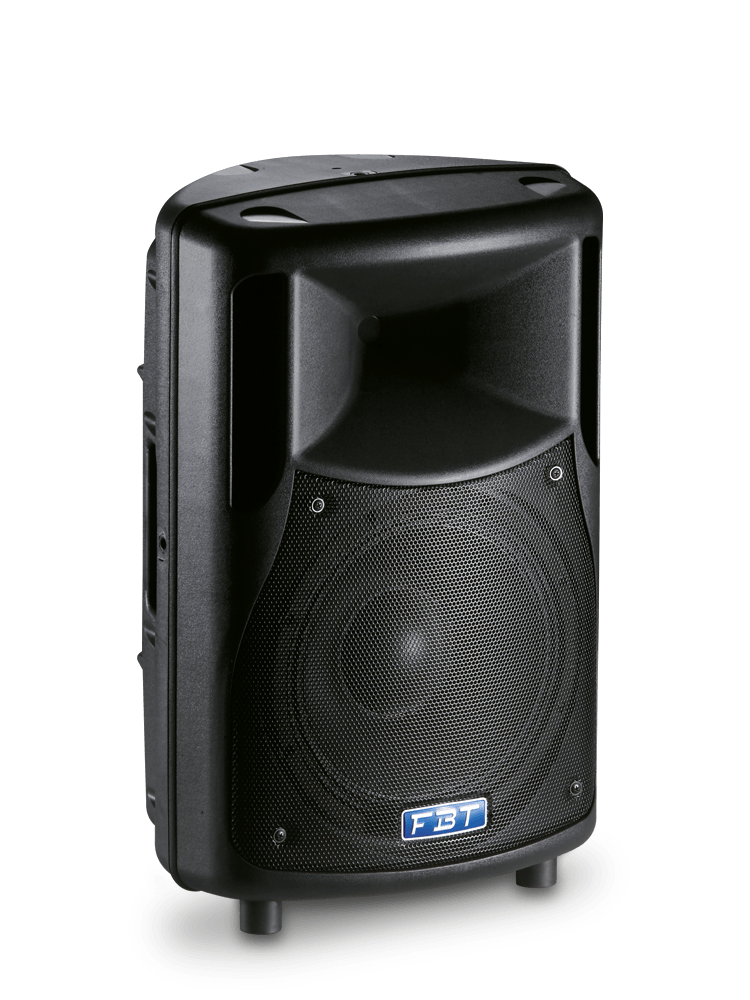

HIMAXX 40
PASSIVE POINT SOURCE 12"
Click on the image to zoom

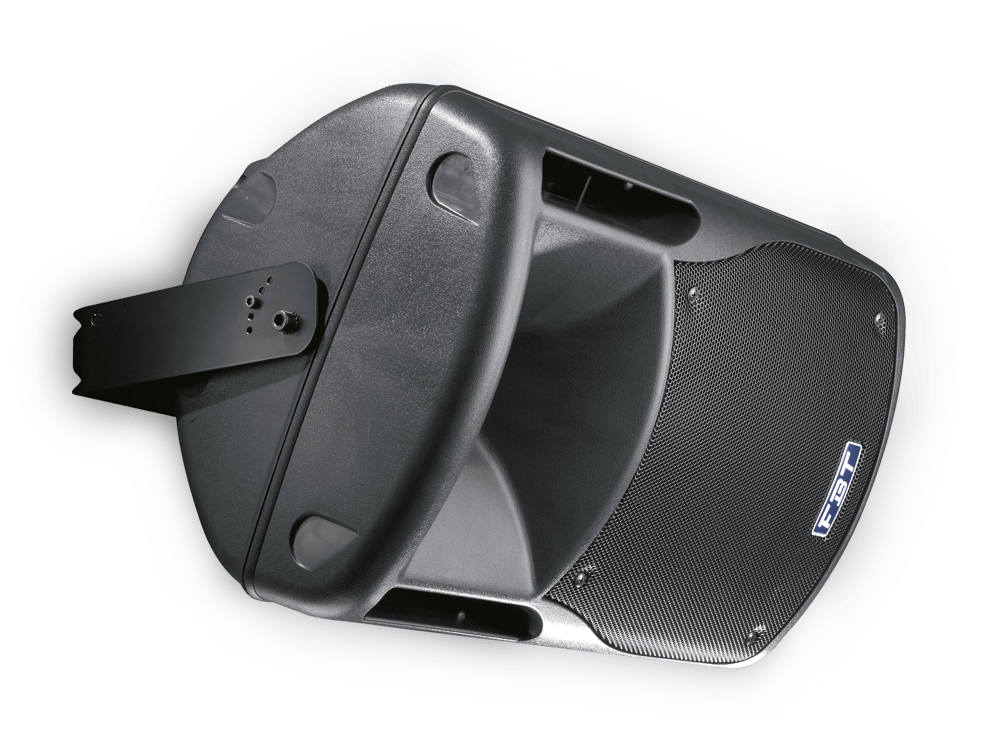

The Himaxx 40 passive loudspeaker offers robust performance and sonic precision for a wide range of sound reinforcement applications. Featuring a 12″ custom woofer with a 2.5″ voice coil and a 1″ B&C compression driver with a 1.4″ voice coil, the system is designed for high output and extended clarity across the frequency spectrum. The passive crossover ensures optimized driver integration, while the enclosure’s rotatable 90° x 60° horn supports flexible horizontal or vertical mounting. The cabinet is constructed from durable polypropylene with M10 rigging points, integrated handles, and a 35mm pole socket. Suitable for use as a main PA, stage monitor, or fixed installation speaker.
- Configuration: 2-way passive bass reflex design
- Low Frequency Woofer: 12″ custom woofer / 2.5″ VC
- High Frequency Driver: 1″ B&C compression driver / 1.4″ VC
- Recommended Amplifier: 500W RMS @ 8 Ohm
- Max SPL: 131 db
- Material: Polypropylene
Technical Specifications
26938
2 way
500W RMS
250W
1000W
8 ohm
50Hz - 20kHz -6dB
12'' - 3'' coil
1'' - 1.7'' coil
99 dB
127 / 131 dB
90° x 60° HxV
1.6 KHz
45Hz - 24dB oct
FBT DSP Processor

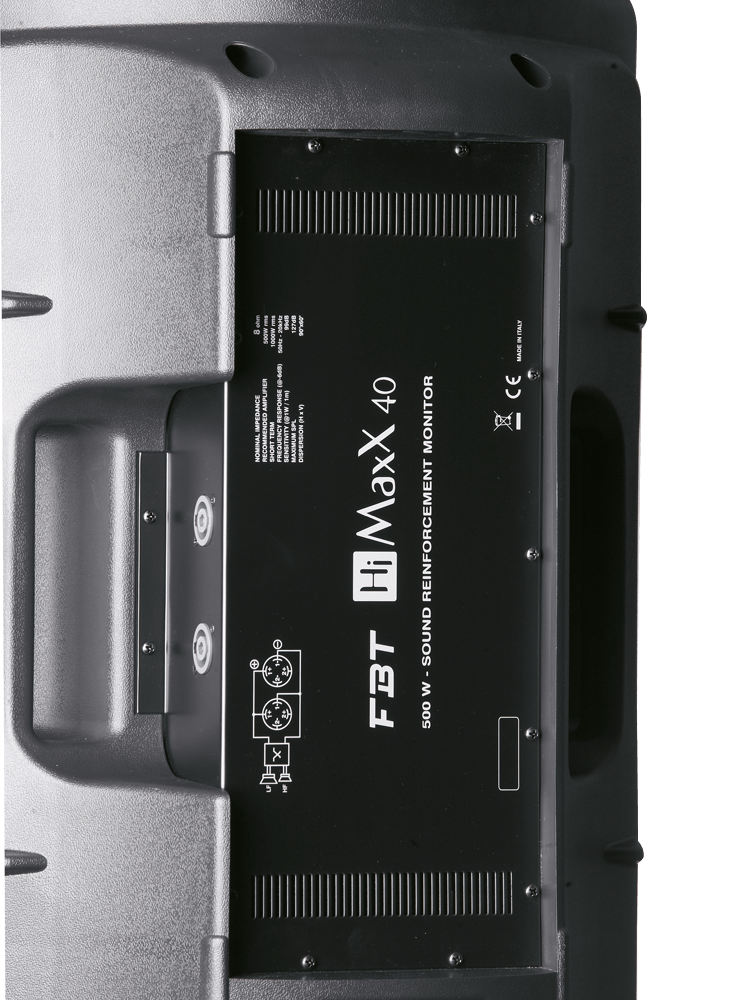

2 x Speakon NL4
407 x 645 x 370 mm / 16 x 25.3 x 14.5 inch
16.2 Kg / 35.7 lb

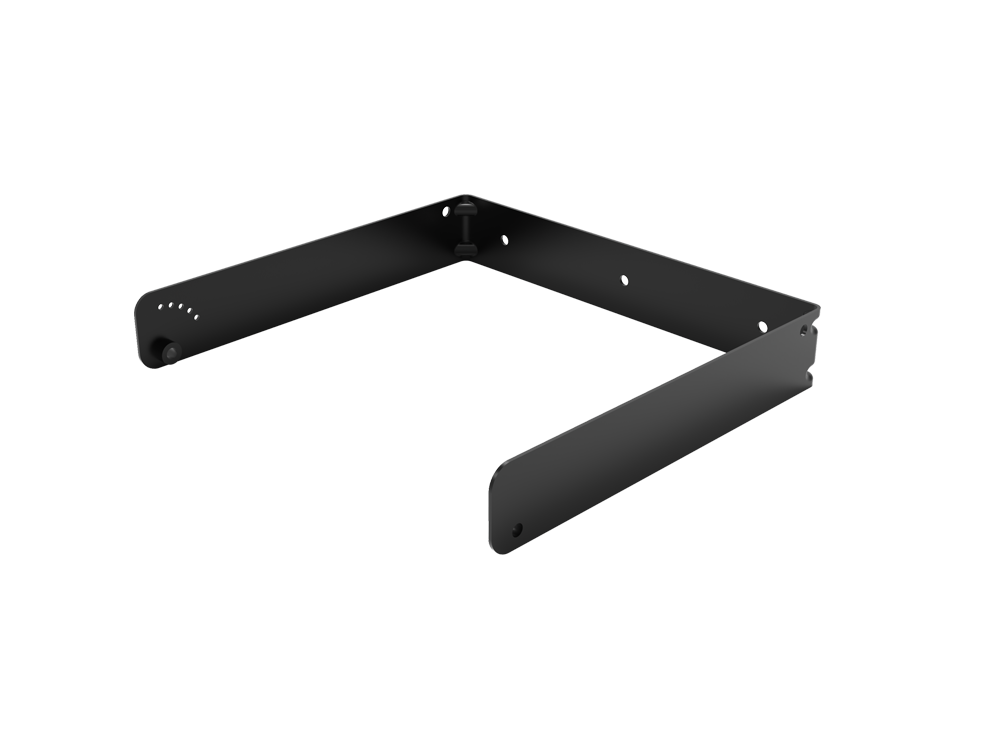

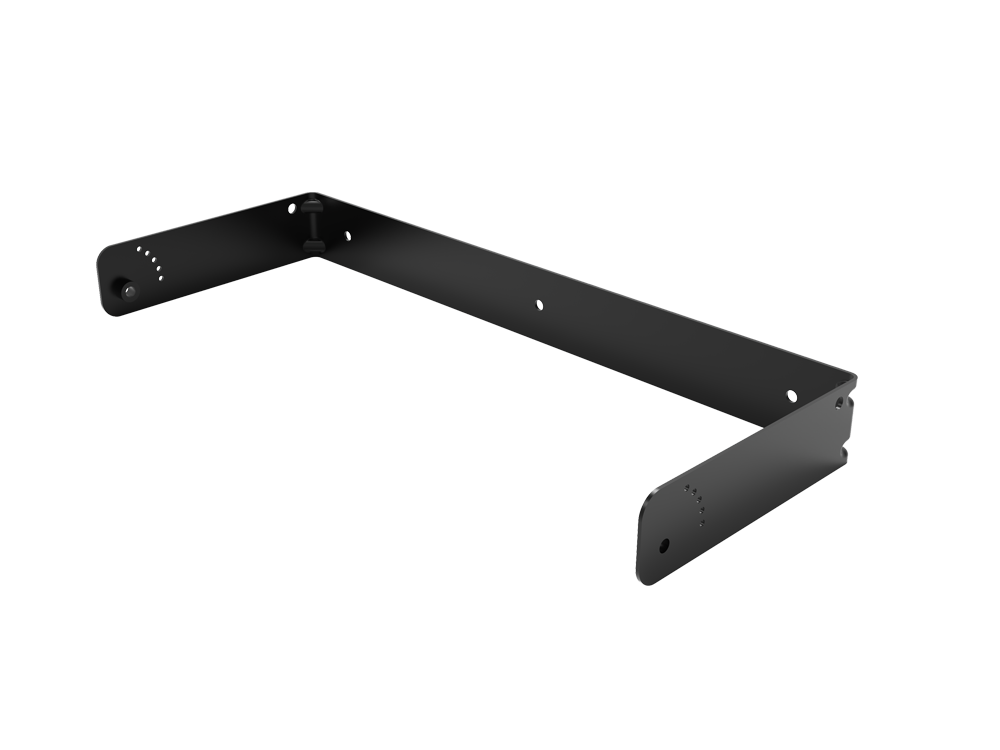

Accessories
