MUSE 210LND/210LN

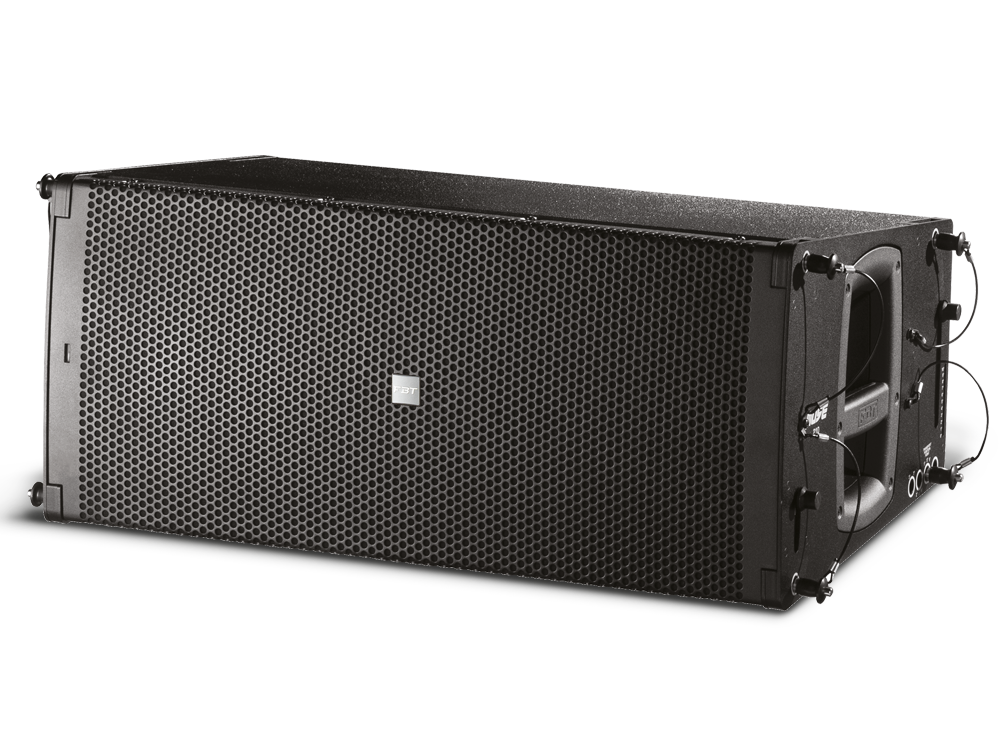

MUSE 210LN/LND is a premium active line array module designed for vertical deployment, integrating advanced network control capabilities via INFINITO – System management Suite and Dante (LND) remote management platform. It is the ideal solution for high-end touring, festival systems, and complex installations that require remote control, monitoring, and seamless digital audio networking. The system features two 10” custom long-excursion woofers with 2.5” voice coils and two 1” B&C compression drivers, mounted on a proprietary waveguide for 90° horizontal dispersion and precise vertical coverage. Frequency response: 55Hz – 20kHz. Maximum SPL: 136dB. Powered by a bi-amplified Class-D module delivering 800W RMS (LF) + 400W RMS (HF), the system includes an integrated DSP with 8 user-selectable presets for curvature compensation, delay, EQ, and cardioid configurations. The module features an aluminum chassis with intelligent forced ventilation, an OLED display with encoder for local settings, and a high-brightness blue front LED for remote identification.

INSTALLATION / RIGGING
• The MUSE 210LND features a fully integrated 4-point rigging system, allowing fast, tool-free vertical array assembly. Splay angles are adjustable in 1° increments from 0° to 10°, enabling precise coverage tuning for any venue.

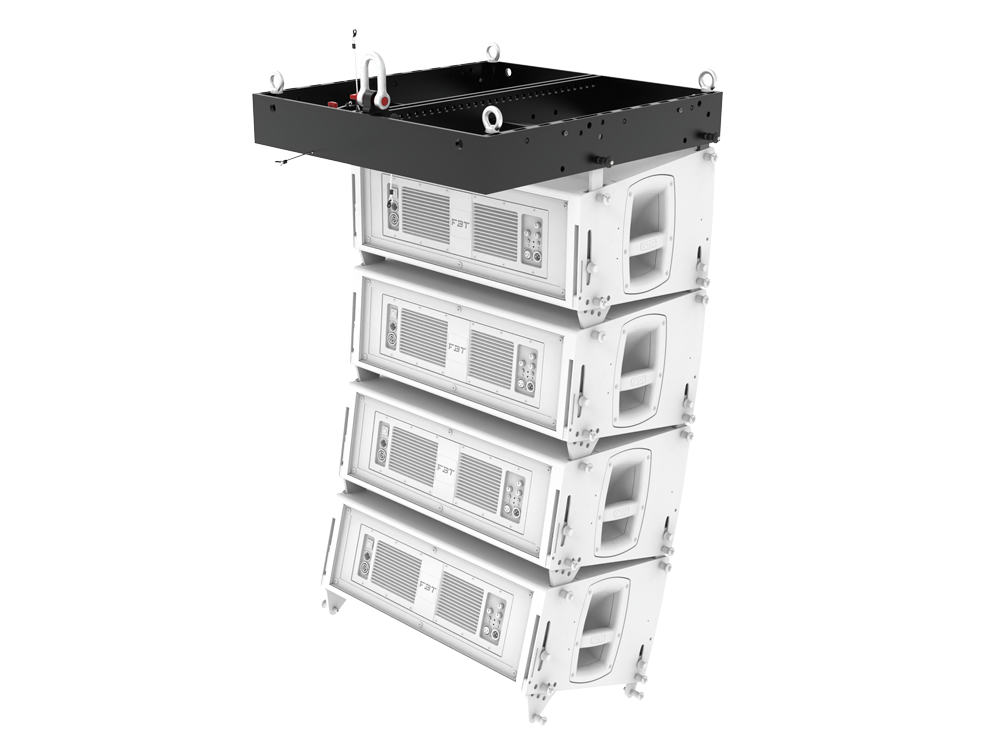

• Up to 16 modules can be flown in a single vertical cluster using the MS-F 210 flybar.
• Designed for easy ground-stacking and suspended configurations, the system seamlessly integrates with all MUSE flyable and ground-stacked subwoofers.
• Constructed from 15mm birch plywood with a scratch-resistant finish, the enclosure features dual ergonomic handles, a front grille with acoustic cloth, and recessed hardware for secure stacking.

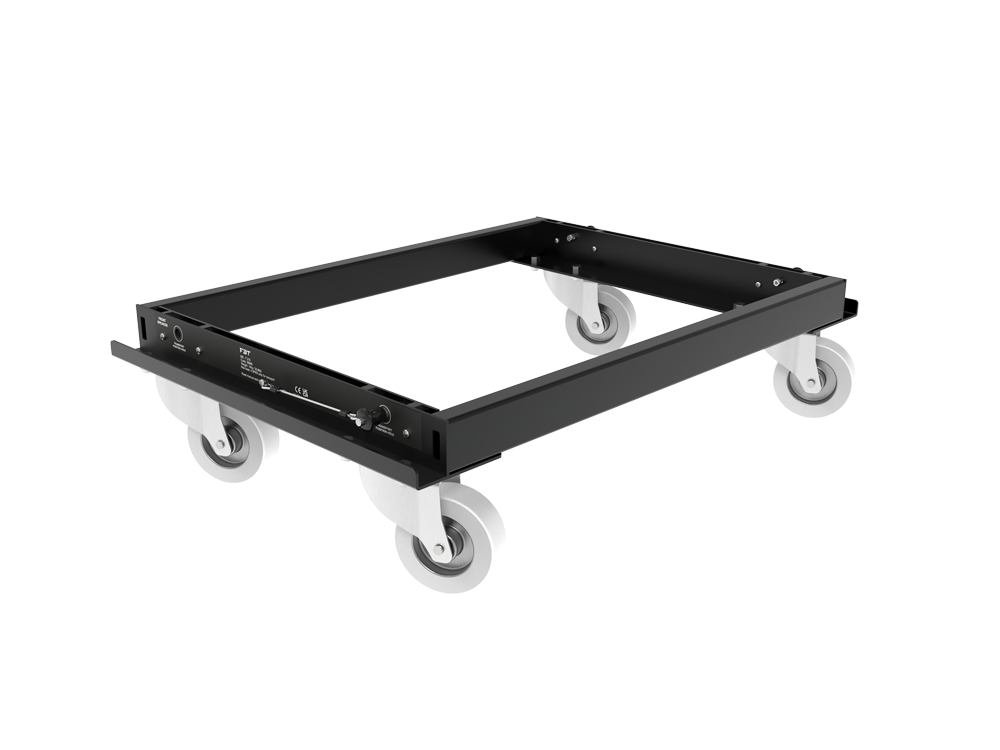

• Compatible with MUSE accessories: MS-F 210 (flybar), MS-T 210 (transport trolley), MS-C210 (rain cover), MS-J 210 (metal joint)

CONFIGURATIONS
• VERTICAL ARRAY CONFIGURATION: Supports vertical arrays of up to 16 modules, with adjustable splay angles to optimize short and long-throw coverage.
• SUB INTEGRATION: Pairs with MUSE118 flyable subwoofer Series, or MUSE218 ground subwoofers in flown or ground-stacked configurations to provide full-range reinforcement.
• HIGH-OUTPUT SETUPS: For large-scale systems, the 210LN can be combined with MUSE 218 ground subwoofers for extended low-frequency power and cardioid array configurations.

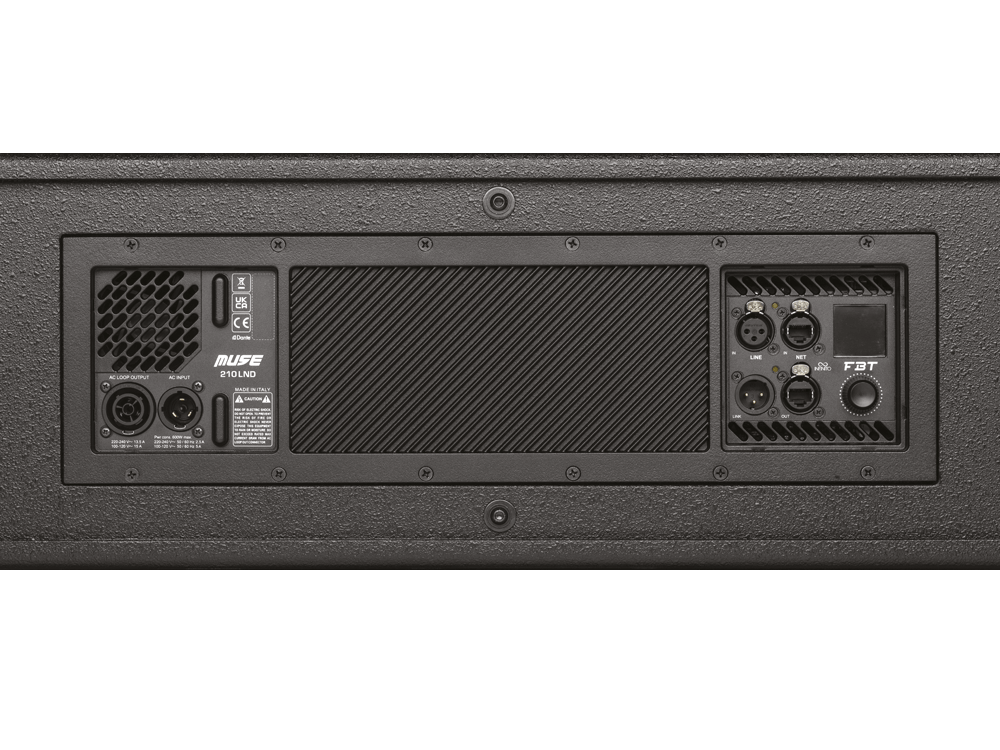

At the heart of the system is the advanced amplification module with integrated TCP/IP network interface. Built on the OCA ALLIANCE AES70 standard, it ensures seamless communication with the INFINITO System Management Suite software and receives 24-bit, 48–96kHz digital audio streaming from any Dante-compatible device. Housed in a robust aluminum chassis with intelligent forced ventilation, the module features an OLED display with encoder for easy parameter adjustments. A high-brightness blue front LED allows remote identification of the device, even under daylight conditions.
