VENTIS 110A

Ventis 110A is a two-way point source crafted with a birch plywood cabinet, scratch resistant enclosure and internal bracing.

Rotatable horn for optimal horizontal or vertical sound dispersion angle. The 80° H x 50° V constant directivity of this point source 10″ LF/1″ HF delivers in the listening area up to 124/131 dB SPL. Frequency response 58Hz to 20KHz. Powering the Ventis 110A is a sophisticated amplifier module, entirely designed in Italy, featuring a switching-mode power supply. The LF section delivers 700W RMS through a Class-D topology for efficiency and punch, while the HF section provides 200W RMS via a refined Class-H/AB design, ensuring smooth and detailed high-frequency reproduction. Equipped with B&C compression drivers and FBT’s own custom, long excursion woofers. Full suspension possibility through 6 M10 rigging points.

The flexibility of the Ventis 110A makes it just as suitable for fixed installation as for use on stage as a front-fill or under-balcony speaker. The speaker includes two aluminum handles with rubber inserts and is equipped with 1.38″ pole mount socket and a 45° sloped profile for unobtrusive placement on-stage as a monitor. The speaker is equipped with B&C compression drivers and FBT’s own custom, long-excursion woofers.

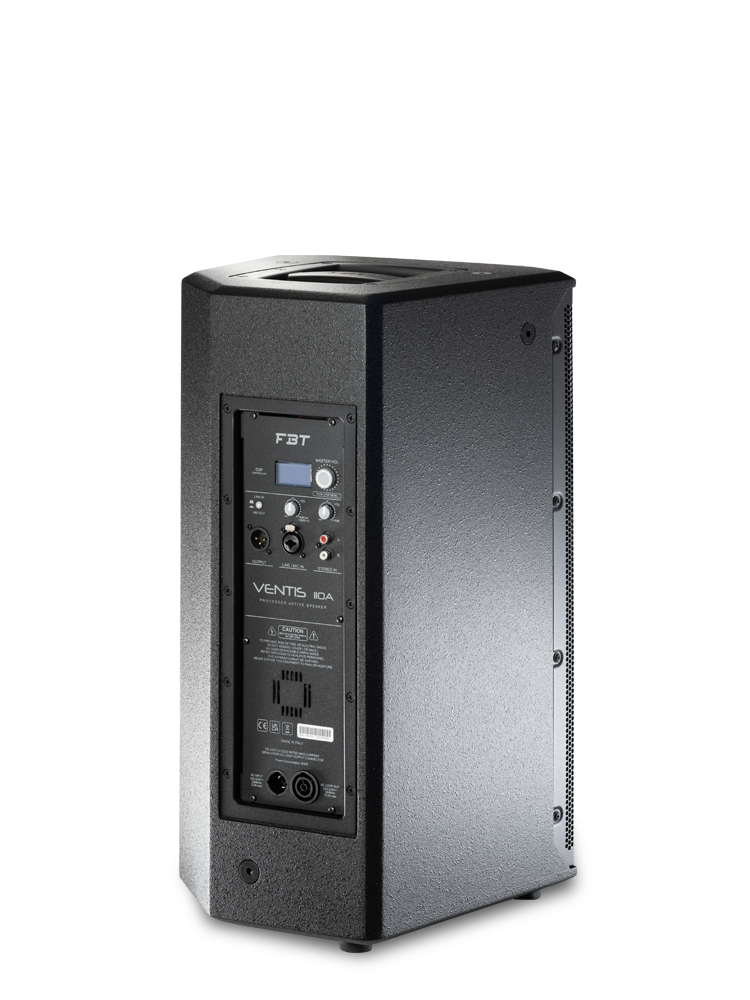

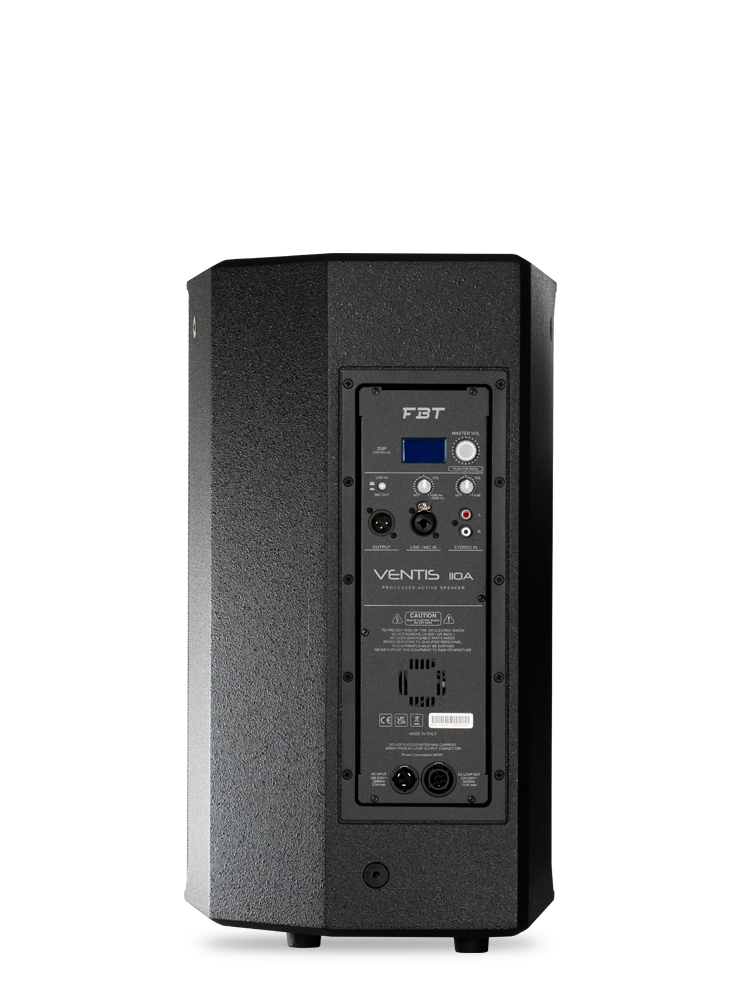

The on-board DSP is located on the rear of each enclosure and the menu is navigated via a single rotary control with push-to-select functionality. Users can choose between a total of 6 pre-optimised settings: Original/Live, Vocal, DJ, Touring, Loudness and Warm. Besides, 2 further slots are available for users to form their own presets, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, a low, medium, high EQ and a delay line between 0 and 10 meters. Users can also choose between three limiter modes: MIN, NORMAL or MAX.

The Ventis series offers a wide range of loudspeakers built in birch plywood, as suitable for fixed installation as they are for use on stage. The series comprises five point sources and two monitors available in either passive or bi-amplified active versions.
