VERTUS CLA 118SA

ACTIVE SUBWOOFER 18"

VERTUS CLA 118SA

Click on the image to zoom

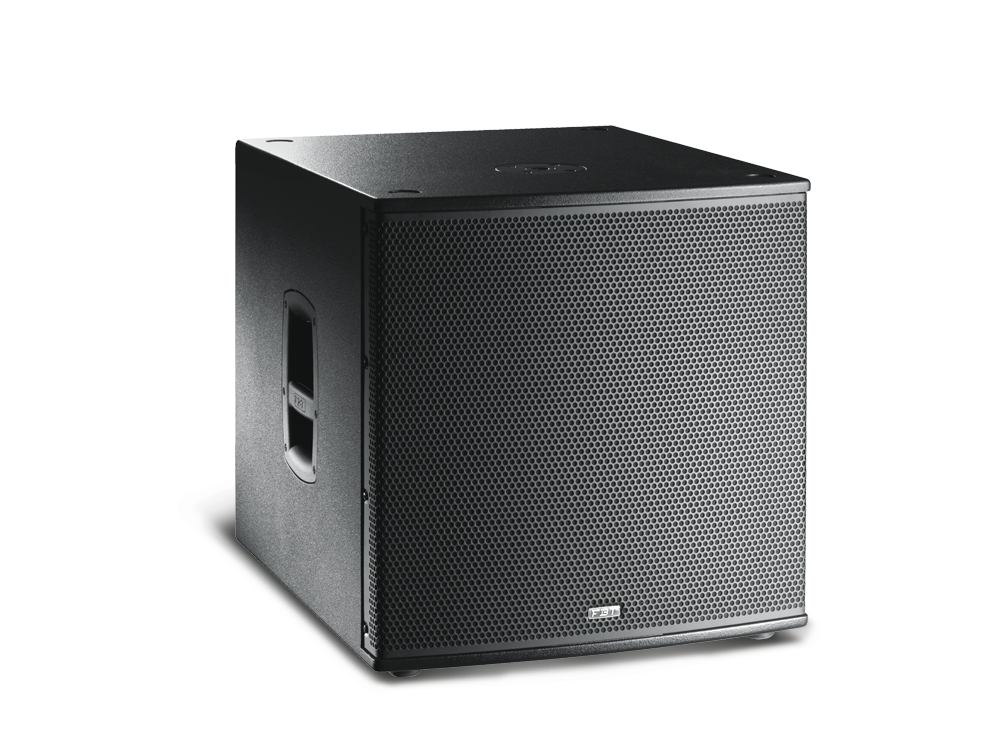

The Vertus CLA 118SA is an active subwoofer featuring a bass-reflex design optimized for maximum low-frequency extension and efficiency. It integrates a high-excursion 460mm (18″) B&C woofer loaded into a specially designed reflex port engineered with extensive laminar airflow to minimize turbulence and power compression, even at high output levels. Based on a Class D topology with a switching-mode power supply, the amplifier ensures high efficiency, reduced weight, and maximum thermal reliability delivering an output of 1200W RMS.

Onboard DSP processing includes eight factory presets, allowing fast and accurate configuration tailored to different application scenarios. The system provides generous headroom, excellent signal integrity, and maximum operational reliability. The enclosure is built from high-grade birch plywood and finished with scratch-resistant black paint. It includes two robust aluminum handles with rubber inserts for improved grip and comfort during transport and an M20 pole for integration with other CLA tops.

  • Configuration: Bass reflex
  • Low Frequency Woofer: 1 x 18” – 3” VC
  • Built-in Amplifier: 1200W RMS
  • Maximum SPL: 138dB half space
  • Material: Baltic birch plywood

Technical Specifications

39681

1 reflex way

1200 W RMS

2400 W

33Hz - 120Hz -6dB

1x18 -3 coil inch

134/138 half-space dB

omnidirectional HxV

22 Kohm

preset dependant KHz

640 VA

XLR with loop

5 / 16.4 m/ft

555 x 572 x 660 mm / 21.8 x 22.5 x 25.6 inch

41.5 Kg / 91.5 lb

800 x 790 x 600 mm / 31.4 x 31.1 x 23.6 inch

48.5 Kg / 107 lb

Accessories

VT-C 118SA

VT-C 118SA

VT-CH 118SA

VT-CH 118SA
