- Configuration: 2 way
- Low Frequency Woofer: 8” – 2” VC
- High Frequency Driver: 1” – 1.4” VC
- Recommended Amplifier: 250W RMS
- Maximum SPL: 126dB
- Material: Baltic birch plywood

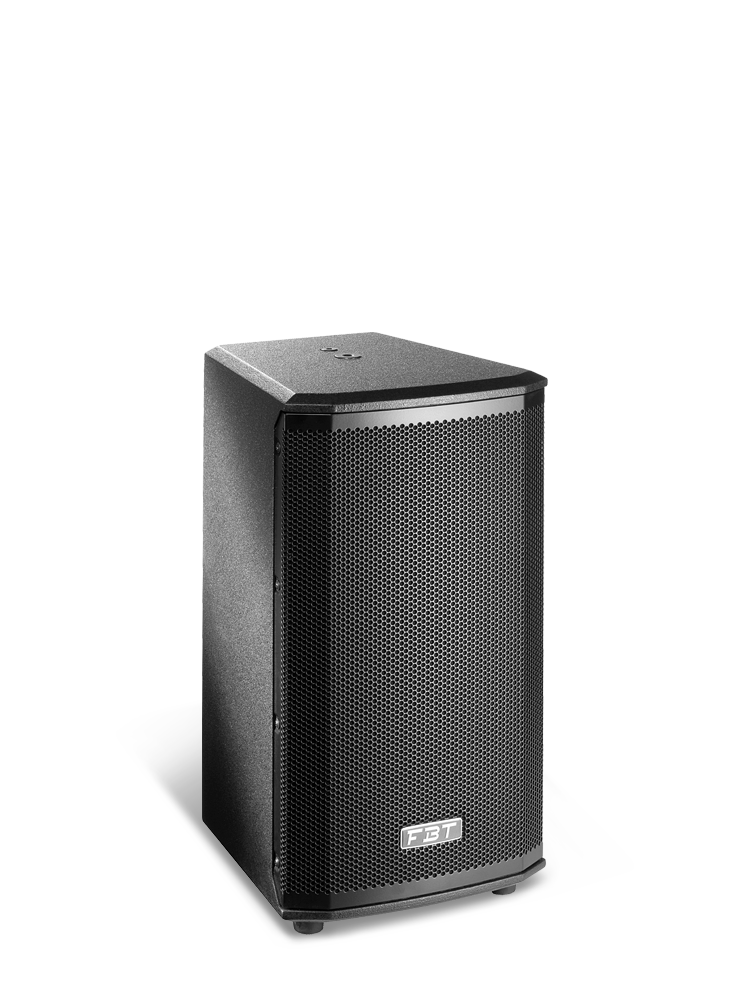

Ventis 108 is a two-way point source crafted with a birch plywood cabinet, scratch resistant enclosure and internal bracing.
Recommended amplifier 250W RMS. Rotatable horn for optimal horizontal or vertical sound dispersion angle. The 80° H x 50° V constant directivity of this point source 8″ LF / 1″ HF delivers in the listening area up to 121/126 dB SPL. Frequency response from 70Hz to 18kHz. Built-in passive crossover with soft-trip protection for the LF woofer and HF driver. Full suspension possibility through 4 M5 rigging points. The flexibility of the Ventis 108 makes it just as suitable for fixed installation as for use on stage as a front-fill or under-balcony speaker. Equipped with 1.38″ pole mount socket, one pocket handle and a 45° sloped profile for unobtrusive placement on-stage as a monitor. The speaker is equipped with B&C compression drivers and FBT’s own custom, long-excursion woofers.
The Ventis series offers a wide range of loudspeakers built in birch plywood, as suitable for fixed installation as they are for use on stage. The series comprises five point sources and two monitors available in either passive or bi-amplified active versions.
41213
2 way
250 W RMS
125 W
500 W
8 ohm
70Hz - 18KHz -6dB
8'' - 2'' coil
1'' - 1.4'' coil
95 dB
121 / 126 dB
80° x 50° rotatable HxV
1.8 KHz
50 - 24dB oct
FBT DSP Processor
2 x SPEAKON
274 x 485 x 270 / 10.7 x 19.1 x 10.6 mm/inch
11.8 / 276 kg/lb
